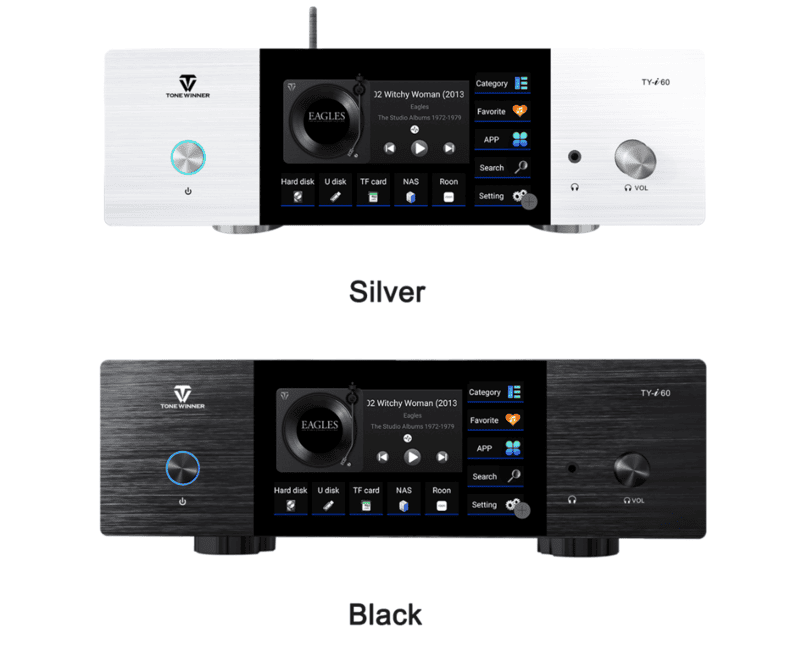

Tonewinner TY-i60 DSD Digital Player - Coming Soon
TY-i60 is a Hi-End digital music player meticulously crafted by Tonewinner, leveraging over 30 years of expertise and technical innovation in high-fidelity design. It is designed to meet consumers' ultimate pursuit of high-quality lossless digital music.
Model
TY-i60G.W.
3.4kgTHD
≤0.0008%
Chassis materials: Aluminum Display screen: 5" LCD touching screen Audio DAC: ES9038+XMOS316 System: Android Processor: RK3568 Memory: 4G DDR4+64G eMMC Hard disk port: M.2 SSD slot USB port: USB3.0x2, Support up to 2T U disk (FAT32. NTFS. exFAT format), 4TB removable hard disk (NTFS. exFAT format) TF card slot: support 2T TF card Wired network: RJ-45 (10/100/1000Mbps) Wireless network: Wi-Fi 5, 2.4G+5.8G DAC decoding: Max. Support to stereo DSD512, PCM768KHz 32bit, MQA full deployment etc Music file formats: Support MQA full deployment. DSD (DSF. DFF. DIFF up to 512), MP3. APE. WAV. FLAC. AIF. AIFF. SACD. ISO. CUE. DTS Internet music server: Apple Music, QQ music, Spotify etc Push: screen push. DLAN. Airplay Network storage: support NAS, SMB V1/N2/V3 OPT/COAX output: 1 ch for each, Max support stereo PCM 192KHz24Bit. DSD256 (PCM mode). DSD 64 (Dop mode) etc | |
Parameters Other | HMDI audio output: 1ch, supporting video and PCM audio output ANA audio output: XLRx1 + RCAx1 Max Support stereo PCM 768KHz32Bit DSD256 (PCM mode, Dop mode, Native mode) DSD512 (PCM mode, Native mode). Controlling modes: Touching screen, Android/iPhone/iPad APP, TV and remote |
SNR
≥110dB
SN: ≥115dB (A weight, BAL out) THD: ≤ 0.0006% (1kHz, BAL out) Output level: 2Vrms‡1.5dB Separation: ≥ 115dB (BAL out) Max power consumption: 50W Standby consumption: 0.5W Net weight: 2.7kg Gross weight: 3.4kg Chassis size: 300x255x88mm Unit size: 300x283x101mm Packing size: 387x326x127 mm Execution standards: GB/T9254.1, GB4943.1, GB17625.1 |
