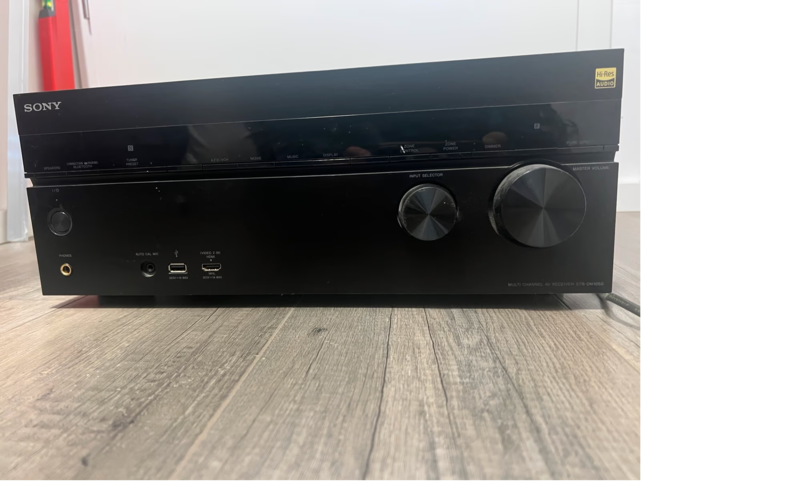

Sony STR DN1050 7.2 Ch AV Receiver

Technical data

  Amplifier
  Sound Field Program (headphones)

  YES
  Sound Field Program (2 channels/multi)

  YES
  HD-D.C.S. (Digital Cinema Sound)

  YES
  Number of amplifier channels

  7 channels
  Bi-Amplifier

  YES
  Portable audio optimizer

  YES
  Sound Field Program (film)

  YES
  Digital Legato Linear

  YES
  Sound Field Program (A.F.D)

  YES
  Sound Field program (music)

  YES
  Video functions
  A/V synchronization

  YES (variable)
  Deep Colour

  YES
  Video-Upscaler & Converter (Analog to Component/HDMI®)

  YES
  1080p/24p

  YES
  Audio return channel

  YES
  Programmable HDMI® video input

  YES
  Program. Components video input

  YES
  HDMI® signal loop

  YES
  x.v.Color (xvYCC)

  YES
  3D via HDMI®

  YES
  BRAVIA SYNCTM (CEC)

  JA (One-Touch play, system audio control, system off)
  4K Ultra HD output

  YES
  Automatic loudspeaker calibration
  DCAC (Digital Cinema Auto Calibration)

  YES
  Tuner functions
  Voreing. Channel (FM/MW)

  TTL60 (-/30/30)
  RDS

  YES
  Interfaces
  Inputs and outputs

  HDMI® video input/output (6/3); composite video input (2); composite monitor output (1); Optional audio input (2); coaxial audio input (4); headphone output; USB (1 front: iPhone/WM); MHL (1)
  Decoding format
  Dolby Digital/DTS

  YES/YES
  Dolby Dual Mono

  YES
  DTS® 96/24

  YES
  Dolby® Pro Logic® II

  YES
  Dolby® Pro Logic® IIx

  YES
  DTS-ES (MATRIX 6.1/DISCRETE 6.1)

  YES
  96 k/24 Bit PCM

  YES
  Dolby® Pro Logic®

  YES
  Dolby Digital EX

  YES
  DTS-HD/Dolby®TrueHD/Dolby® Digital+

  YES
  Custom Installation & Control Functions
  Zone2 Audio

  Speakers (variable)/Linear arrangement (variable/fixed)
  Zone2 video

  HDMI®
  IR repeater (input/output)

  YES (1/1)
  Environmentally friendly and energy-saving
  Power consumption (network standby mode) – Terminals

  1.3 W (Bluetooth®)
  Power consumption (standby mode)

  0.2 W
  Wireless network switch

  Change Bluetooth® standby settings (MENU --Bluetooth® (BT) --BT STANDBY --EIN/AUS)
  Network standby mode enabled – Terminals

  After 19 minutes (Bluetooth®)
  Standby mode activated

  After 19 minutes
  Function overview
  GUI (Graphic user interface)

  YES
  Auto standby function

  YES
  Size and Weight
  Weight (kg)

  10.3 kg
  Dimensions (W x H x D mm)

  430 x 172 x 329,4 mm
