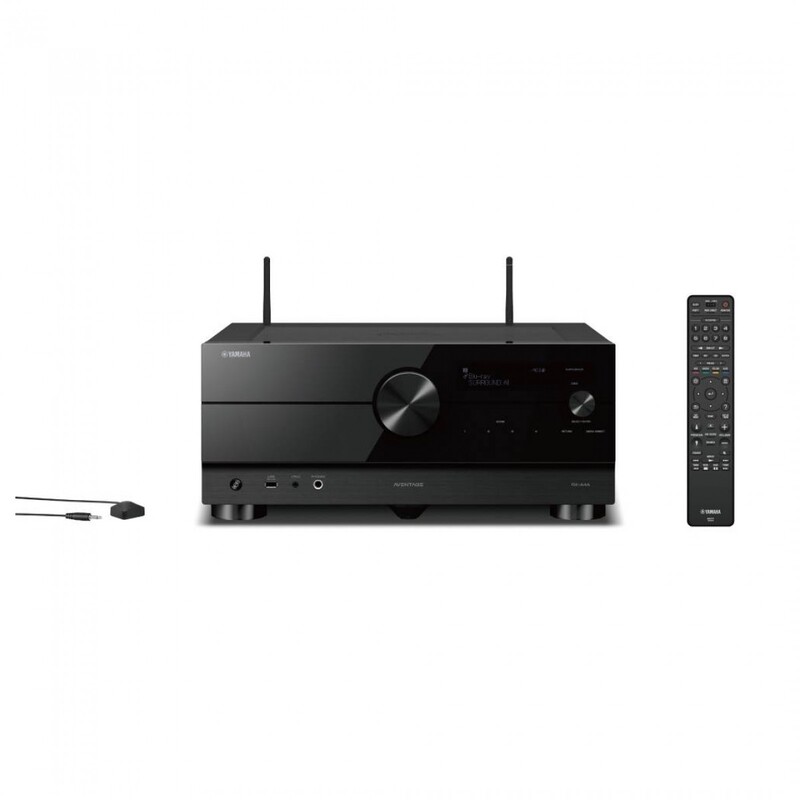

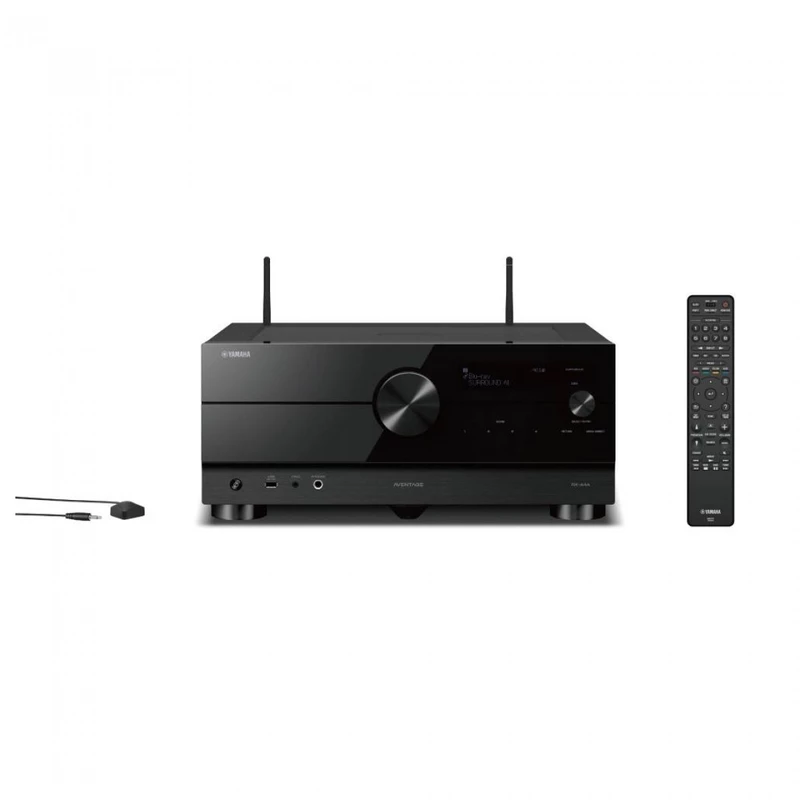

YAMAHA RX-A4A 7.2 CH BLACK HOME THEATER RECEIVER
- Powerful 7.2-channel surround sound with Zone2
- WiFi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast Multiroom Audio
- SURROUND:AI optimizes the surround effect automatically and in real time.
- Dolby Atmos® and DTS:X® with CINEMA DSP HD3
- YPAO™-RSC with multi-point measurement and precision EQ
- HDMI™ 7 inputs/3 outputs, 8K/60 Hz, 4K/120 Hz
- Special gaming function (ALLM, VRR, QMS, QFT) via firmware update
- ESS SABRE ES9007S Premier Audio DAC for high power conversion
- Voice control with Alexa and Google Assistant. * Availability varies by region
SURROUND:AI™
AI technology built into the DSP analyzes the scene of entertainment content and then creates the optimal surround effect to reproduce it with the ultimate impact. This AI analyzes scenes instantly by focusing on specific sound elements such as dialogue, background music, ambient noise and sound effects and automatically optimizes the surround effect in real time. Imagine a Yamaha sound engineer tuning the best sound live and specifically for you while you listen to music. AI technology creates a convincingly realistic impression with expressive performance that goes beyond conventional sound field effects, giving you the most immersive entertainment experience possible. Qualcomm® QCS407 with high-precision 64-bit processing delivers precise surround sound.
CINEMA DSP HD3 for movies, music and gaming
Yamaha's highest quality 3D sound field reproduction technology was developed by combining actually measured sound field data with the latest digital signal processing technology. The revised CINEMA DSP HD3 features new signal processing algorithms and maximizes movie theater sound effects, creating a new dimension of realism. This creates a sound field with an intense sense of presence and without the impression of boundaries. By using front, center and surround speakers to create a virtual rear speaker, CINEMA DSP HD3 playback of up to 11.1 channels is possible even with a 7.1-channel speaker configuration*.
* Requires connection of a front presence speaker.
Dolby Atmos® with Height Virtualization
For those who don't have ceiling speakers or upward-firing speakers, there's Dolby Atmos with Height Virtualization. This system simulates the Atmos sound experience with front-firing speakers. You can configure up to five speakers to have the same effect as two ceiling speakers, or use all seven channels for an effective simulation of four overhead speakers.
Feel Dolby Atmos in every dimension. Combine a 5.1 surround system with two additional overhead speakers or two Dolby Atmos height speakers to create dramatic overhead effects with a truly room-filling sound image - all with the Dolby Surround upmixer for legacy content.
DTS:X®
DTS:X immersive audio formatting maps sound where it would naturally occur in the room, creating a lifelike, multi-dimensional sound experience. With the integrated DTS Neural:X™ spatial remapping engine, you can immerse yourself in your favorite films and enjoy an even more realistic movie experience.
Wireless Rear Speaker Compatible
Combine this AV receiver with the MusicCast 50 or MusicCast 20 wireless streaming speakers to easily create a home theater with wireless surround sound. Experience immersive, realistic sound with intuitive, hassle-free setup. Transform your living room into an entertainment room where you can enjoy movies and music to the fullest.
Technical data
amplifier section | |
channels | 7.2 |
Rated Output Power (1kHz, 1ch driven) | 135 W (8 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 110 W (8 ohms, 0.06% THD |
Amplifier Section | |
Maximum Effective Output Power (1kHz, 1ch driven) | 165 W (8 ohms, 10% THD) |
High Slew Rate Amplifier | Yes |
Surround Sound Processing | |
Surround:AI | Yes |
Dolby Atmos Height Virtualizer | Yes |
Dolby Surround | Yes |
surround sound equipment | |
CINEMA DSP | yes (HD3) |
DSP Programs | 24 |
Dialog Level Adjustment | Yes |
Virtual Presence Speaker | Yes |
Virtual Surround Back Speaker | Yes |
Dialogue Lift | Yes |
SILENT CINEMA / Virtual CINEMA DSP | Yes |
Dolby Atmos | Yes |
Dolby TrueHD | Yes |
Dolby Digital Plus | Yes |
DTS:X | Yes |
DTS-HD Master Audio | Yes |
audio features | |
File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
DA Converter | 384 kHz / 32-bit ESS Hyperstream DAC ES9007S |
audio equipment | |
Pure Direct | Yes |
Compressed Music Enhancer | Yes |
High resolution music enhancer | Yes |
YPAO multi-point measurement | yes with RSC (Reflected Sound Control), 3D, 64-bit High Precision EQ Calculation |
YPAO Volume | Yes |
Adaptive DRC (Dynamic Range Control) | Yes |
Initial Volume & Maximum Volume Setting | Yes |
ART Wedge | Yes |
Bi-amp capability | Yes |
Audio Delay | yes (0-500 ms) |
video features | |
HDMI eARC | Yes |
HDMI pass-through | 8K60AB, 4K120AB (via future update) |
Dolby Vision | Yes |
HDR 10+ | yes (via firmware update) |
VRR/ALLM/QMS/QFT | yes VRR/ALLM/QMS/QFT |
video equipment | |
HDMI Audio Return Channel | Yes |
HDMI upscaling | yes, up to 8K (via firmware update) |
Connectivity | |
MusicCast Surround | Yes |
AirPlay 2 | Yes |
connections | |
HDMI inputs / outputs | 7 / 3 (HDMI2.1 / HDCP2.3) |
HDMI CEC | Yes |
USB input | Yes |
Network Port | Yes |
Wi-Fi | yes (2.4 / 5 GHz) |
Bluetooth | yes (SBC / AAC) |
Front AV Input | USB |
Digital audio input/output: optical | 3 / 0 |
Digital audio input/output: coaxial | 2 / 0 |
Analog Audio Input/Output | 6 / 0 |
phono input | Yes |
Preout | 7.2-ch |
Headphone Output | 1 |
radio section | |
FM / AM radio | yes (Availability varies by region.) |
DAB radio | yes (Availability varies by region.) |
service | |
On-screen display | Graphical User Interface |
SCENE | SCENE PLUS (8 sets) |
App Control | yes (iPhone / iPad / Android phone / tablet) |
Web Browser Control | Yes |
remote control | Yes |
multi-room equipment | |
Zone 2 audio output | Preout / HDMI |
Powered Zone | Zone 2 |
Zone Video Output | HDMI |
+12V trigger outputs | 2 |
remote control inputs | 1 / 1 |
party fashion | Yes |
Basics | |
Standby Power Consumption (IR only) | <0.4 W |
Auto Power Standby | Yes |
ECO mode | Yes |
Dimensions (W x H x D) | 435 W x 191 H x 442 D mm (with antenna up: 435 W x 270 H x 442 D mm) |
Weight | 16.2 kg |
