YAMAHA AS 1200 BLACK/PIANO BLACK AMPLIFIER
With its level meters and beautifully designed design, the A-S1200 pays respectful tribute to the golden era of hi-fi technology. And with its impressive range of cutting-edge technology, emotionally charged, pure sound is of course guaranteed.
- High-quality components ensure top-class sound reproduction.
- With the powerful toroidal transformer, nothing spoils the true enjoyment of music
- Stylish level indicators make the dynamics and pulse of the music visible – a nostalgic tribute to the good old hi-fi era
- Fully symmetrical power amplifier
- The basic mechanics provide the necessary stability even for expressive, rhythmic bass

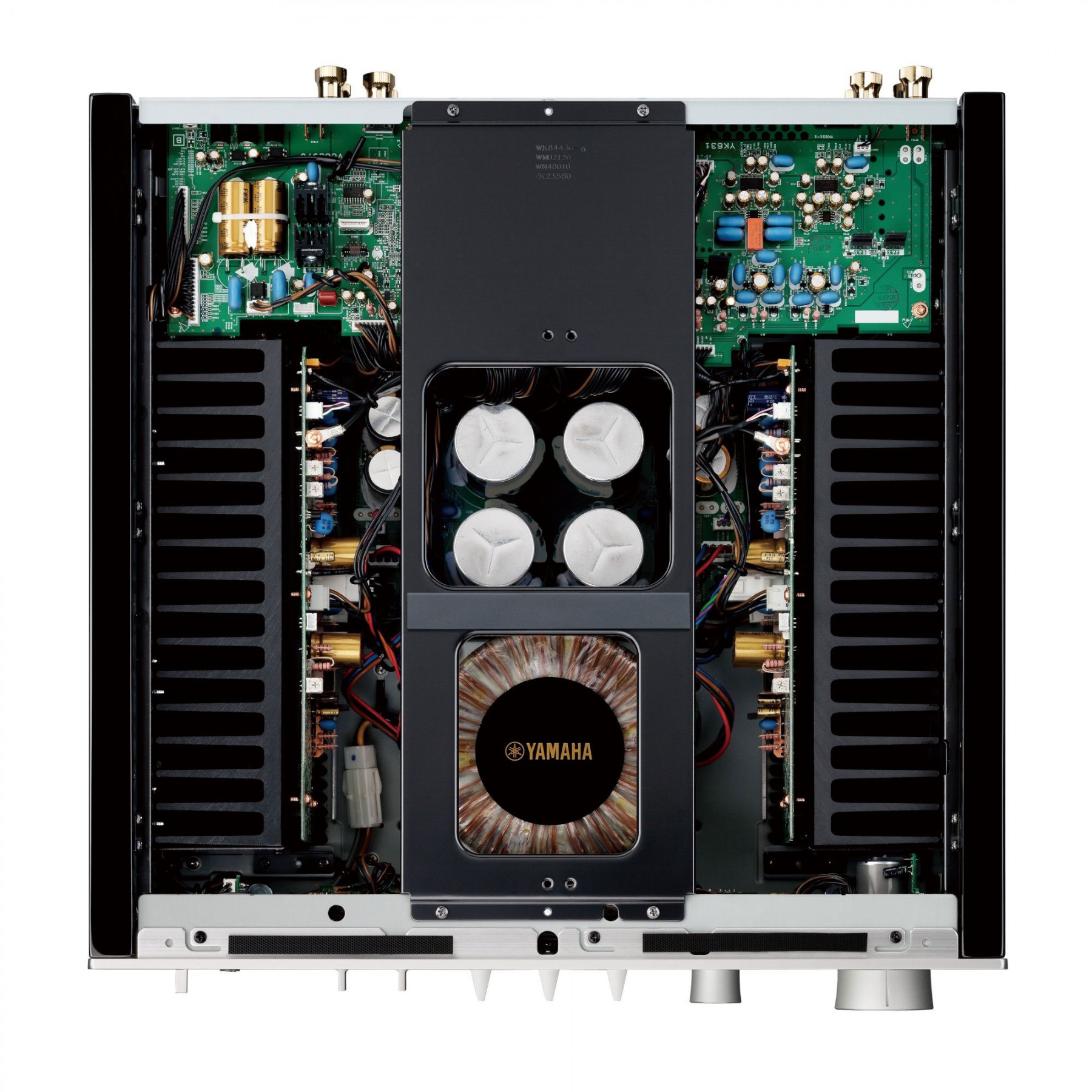

Toroidal transformer
The A-S1200 impresses with the technical excellence and pure sonority of a toroidal transformer, which is usually reserved for the top products in the hi-fi world. In combination with a variety of high-quality hi-fi functions, the toroidal transformer plays its part in ensuring that the musical emotions reach the listener unadulterated.

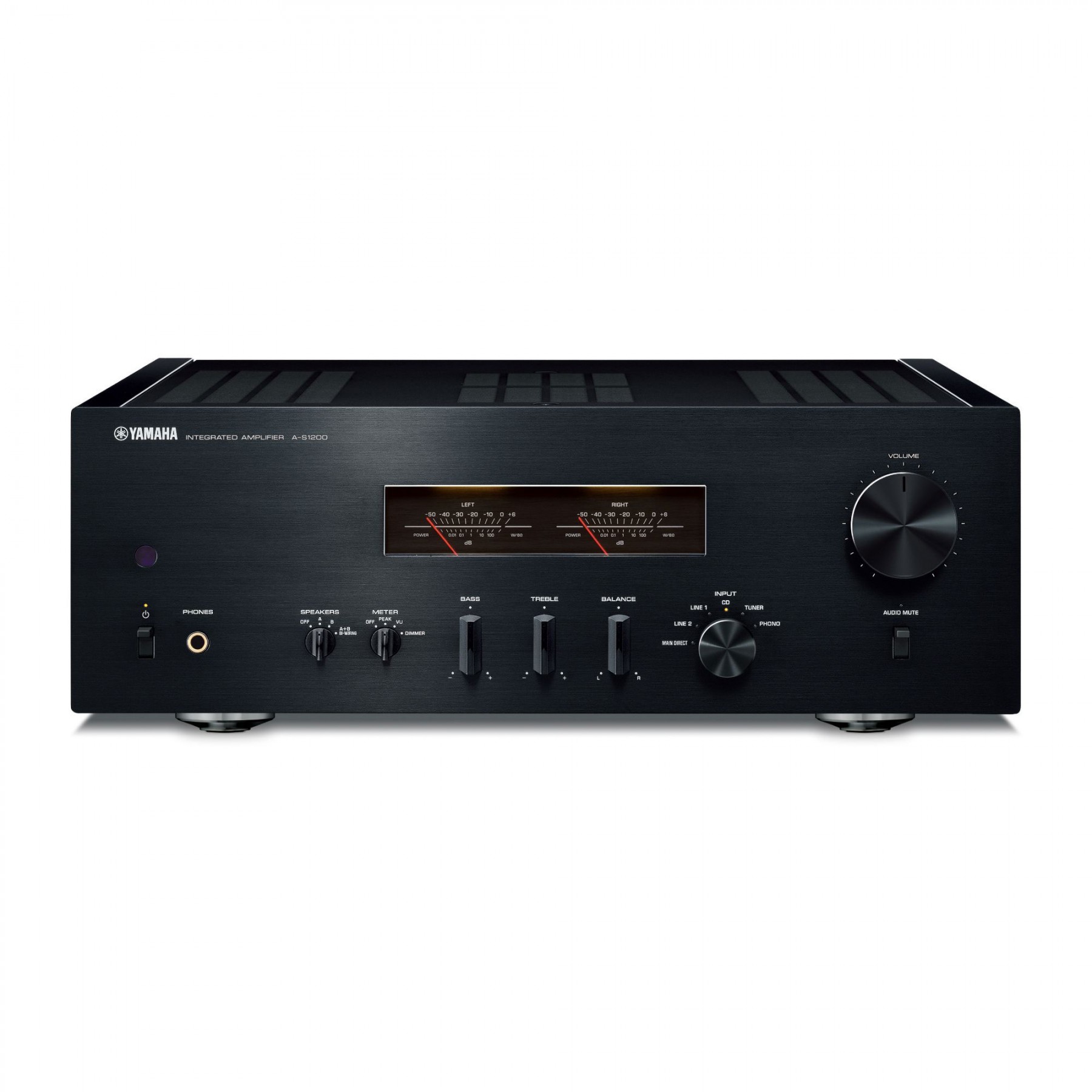

Attractive level indicators
The level indicators are not only a nostalgic tribute to the golden age of hi-fi, but also underline that crystal-clear hi-fi sound is making a brilliant comeback among today's music enthusiasts. The indicators make the dynamics and pulse of the music visible and give the system a pleasant atmosphere with their softly glowing LEDs.
Thick ground wires contribute to lower impedance
The thick ground wires supported the design concept to reduce impedance - a decisive factor in the first-class hi-fi quality of the components. In the A-S1200, this design concept begins with Yamaha's high-quality hi-fi components and helps to create an open, natural sound space in which performers and listeners come closer together.

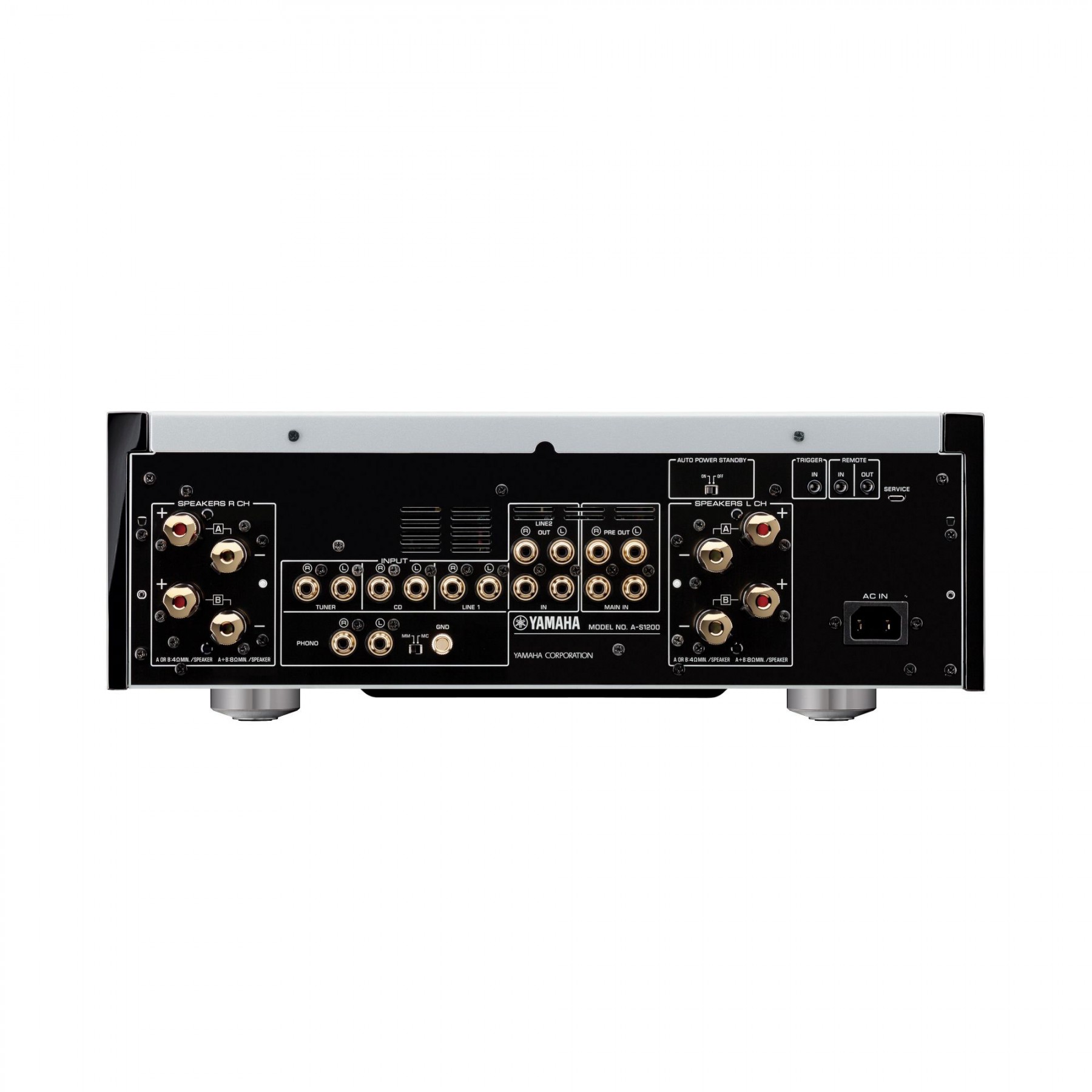

Original quality speaker terminals
The luxurious speaker terminals are made of solid brass and can be easily tightened by hand - this ensures a highly secure connection.
Technical data
Max. output power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160W + 160W |
High dynamic output power / channel ( 8/6/4/2 ohm ) | 105/135/190/220W |
Rated Output Power | [20 Hz-20 kHz, 0.07% THD] 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms) |
Damping factor | ≧ 250 (1 kHz, 8 ohms) |
Frequency response | +0 / -3 dB (5Hz-100kHz) , +0 / -0.3 dB(20 Hz-20 kHz) |
Phono equalization | +/-0.5dB (PHONO (MM/MC)) |
Total Harmonic Distortion (20Hz to 20kHz) | [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms) |
Signal to noise ratio | PHONO MC: 90 dB PHONO MM: 96 dB CD, etc.: 110 dB |
Input Sensitivity | [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms PHONO MM: 3.5 mVrms/47 kohms CD, etc.: 200 mVrms/47 kohms MAIN IN: 1 Vrms/47 kohms |
Transformers | 625VA (Toroidal) |
Dimensions (W x H x D) | 435×157×463mm |
Weight | 22kg |
