Tonewinner YX-03 5.1.2 home theater Surround System

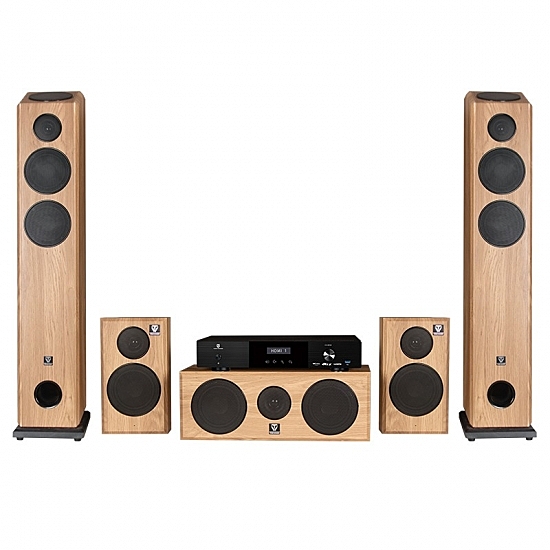

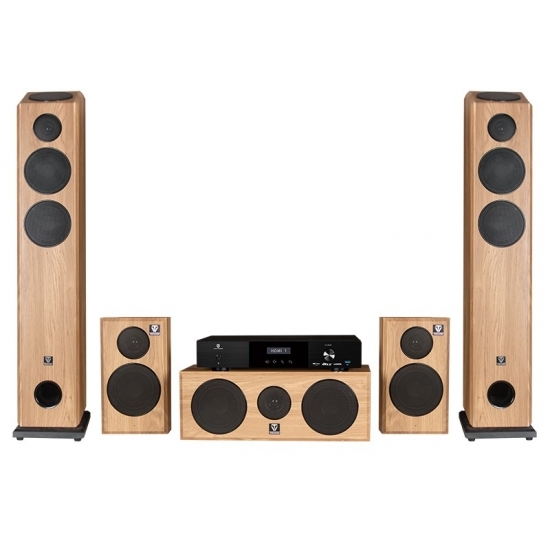

YX-03 is a fashionable home cinema and Karaoke speaker system，which supports Dolby Atmos and DTS:X. It is specially designed for modern family living rooms. The device perfectly integrates 5.1.2 system with a separated amplifier, center speakers, surround speakers and floor-standing Left and Right main speakers.
| Part No. | AT-05S(amplifier) |
| Power output | 8×200W(4Ω,THD=1%, 1kHz) |
| S/N | ≥85dB (A weighted) |
| Distortion | ≤0.03% (1kHz,normal working status) |
| Impedance | 4-8Ω |
| Power voltage | 220V~/50Hz |
| Dimension | 431x270x69mm ( W x D x H) |
| Net weight | 5.5 kg/piece |
| Gross weight | 7 kg/piece |
| Part No. | YX-03 L/R speaker |
Driver size | 1" x 1+5"×3+8"×1 |
Rated power | 150-300W |
Frequency response | 20Hz-20kHz(±3dB) |
Impedance | 8Ω |
Dimension | 194x1110x305mm( W x D x H) |
Net weight | 16 kg/piece |
Part No. | YX-03 S speaker |
Power | 50-100W |
Frequency response |
75Hz-20kHz(±3dB) |
Impedance | 8Ω |
| Driver size | 1" x 1+5" x 2 |
| Dimension | 182x295x105mm ( W x D x H) |
| Net weight | 2.5kg/piece |
| Part No. | YX-03 C speaker |
| Power | 50-100W |
| Frequency response | 75Hz-20kHz |
| Driver size | 1" x 1+5" x 2 |
| Impedance | 8Ω |
| Dimension | 500x182x1160257mm ( W x D x H) |
| Net weight | 6kg/piece |
