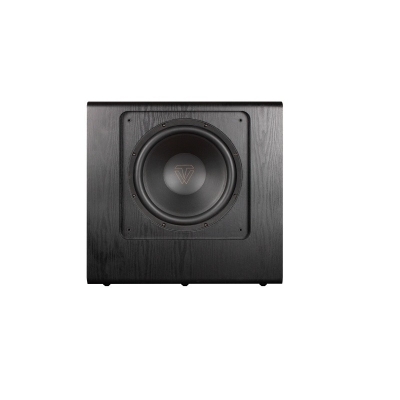

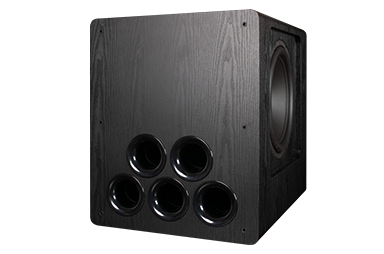

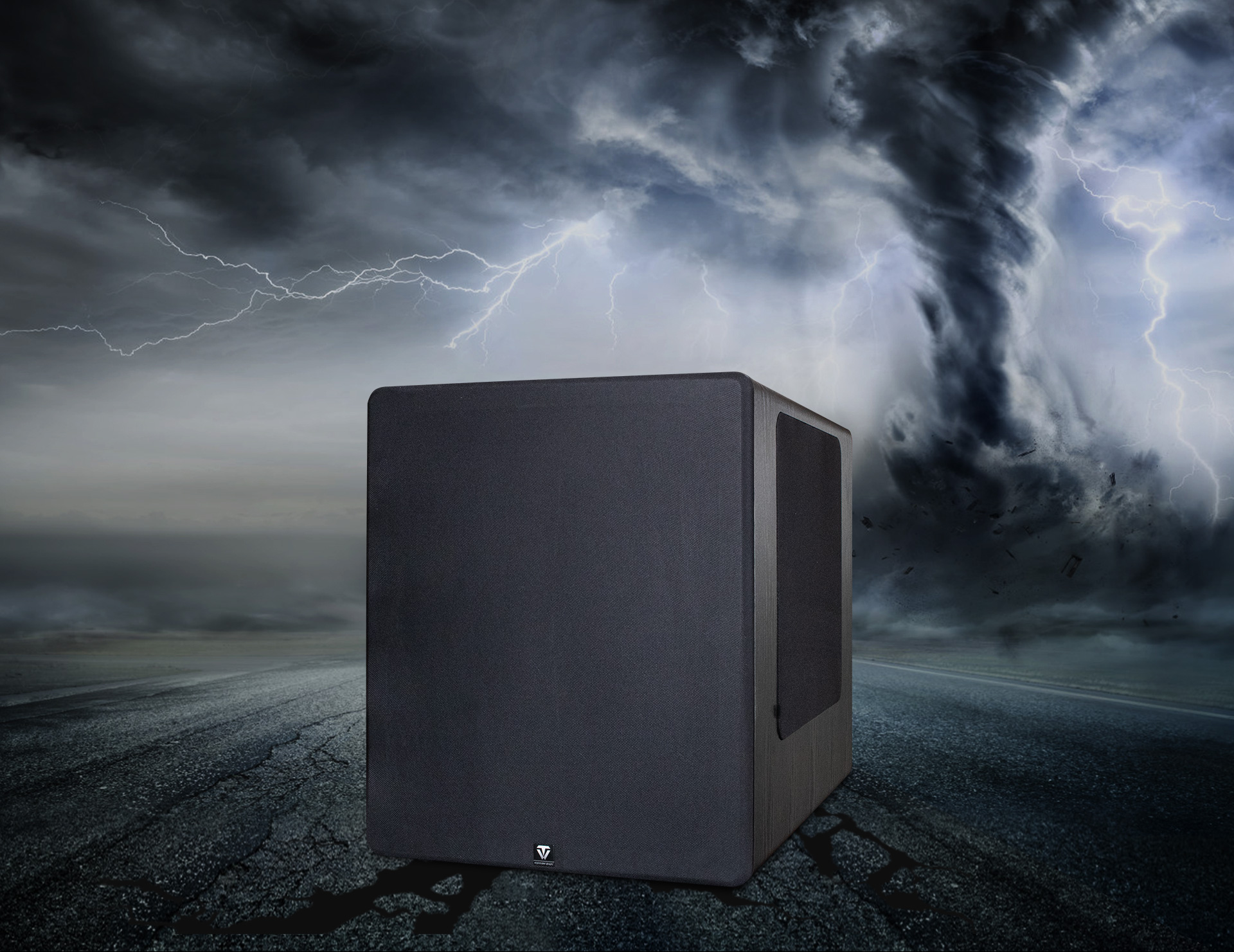

Tonewinner D8000 dual 15 inch 1500W DSP powered subwoofer
ToneWinner dual 15 inch DSP powered subwoofer

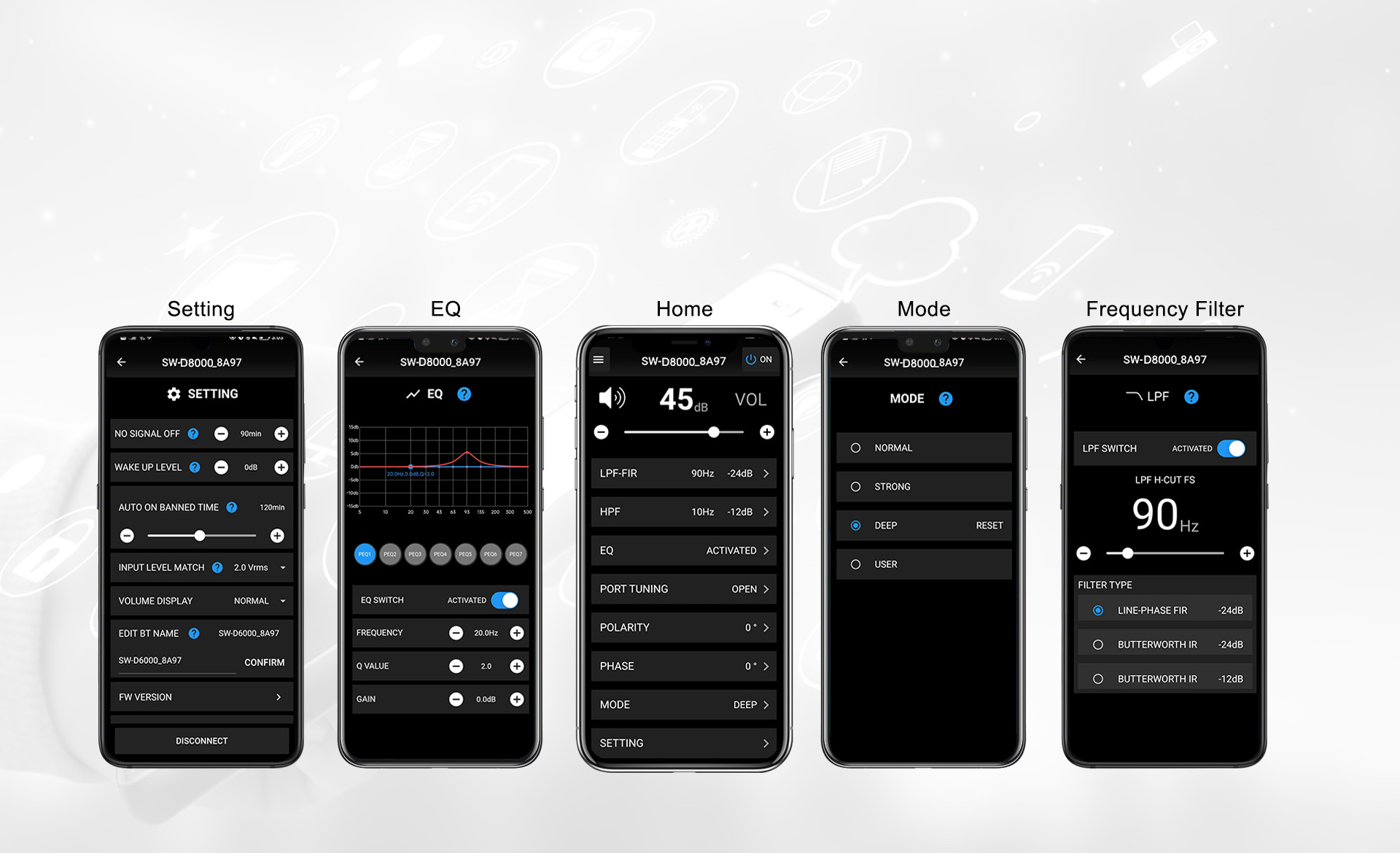

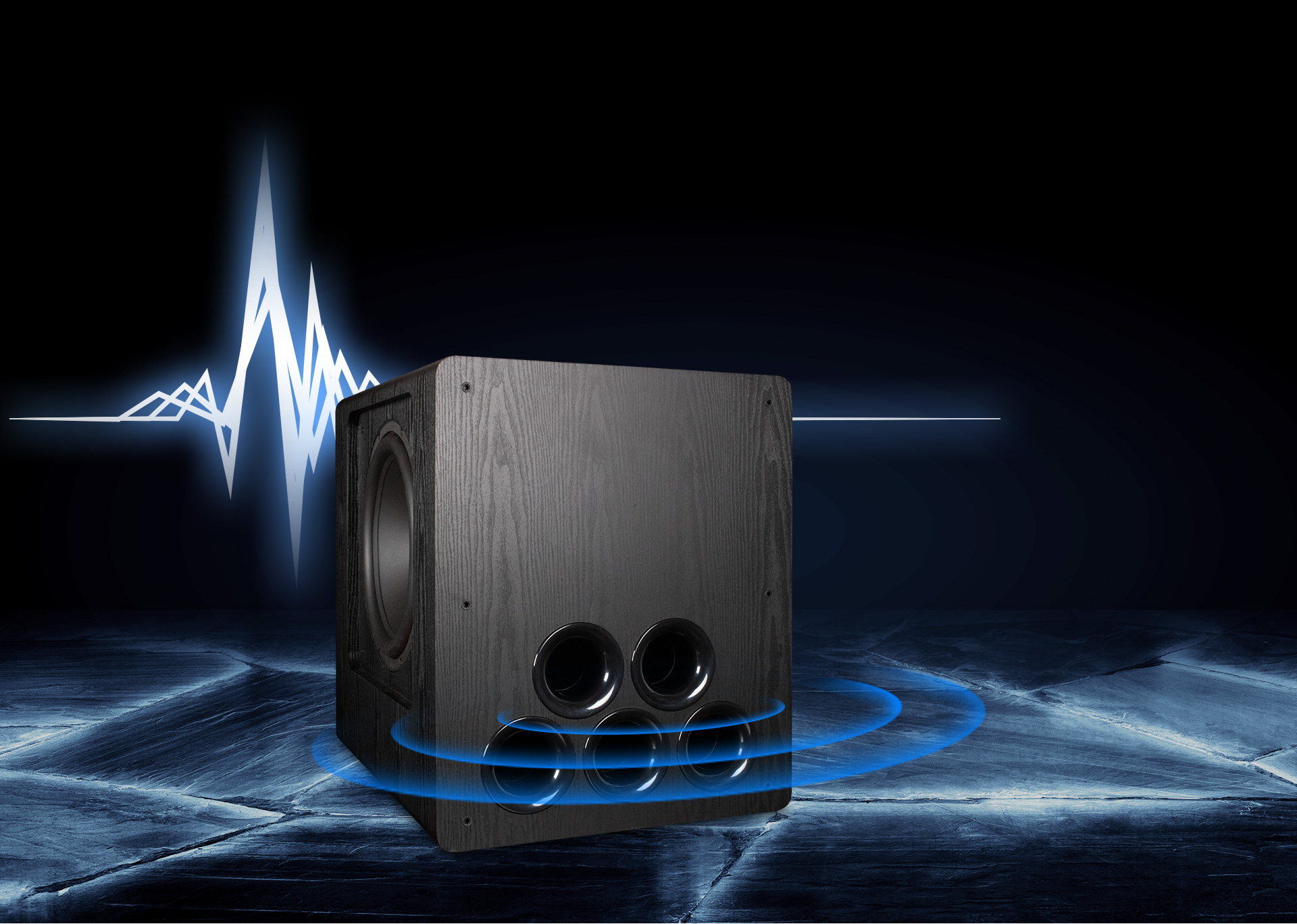

SW-D8000 is a dual 15 inch DSP powered subwoofer, with 1500W RMS/3Ω and 8000W/3Ω Peak Power. It adopts a Class D amplifier with built-in DSP. It has built-in Bluetooth and App to adjust volume, ports tuning, polarity, 0° to 180° phase, HPF, LPF, slope, EQ, no signal standby, wake up level, input level match, and four listening modes. It has built-in Bluetooth connectivity and supports Tonewinner App. As a top 10 audio brand in China, Tonewinner has 30+ years experience in designing and manufacturing acoustic products. As an original supplier, Tonewinner always warmly welcomes distributors, dealers, partners and customers around the world.
Model
SW-D8000Power
1500W (3Ω RMS)G.W.
77KG/pcsDriver
2

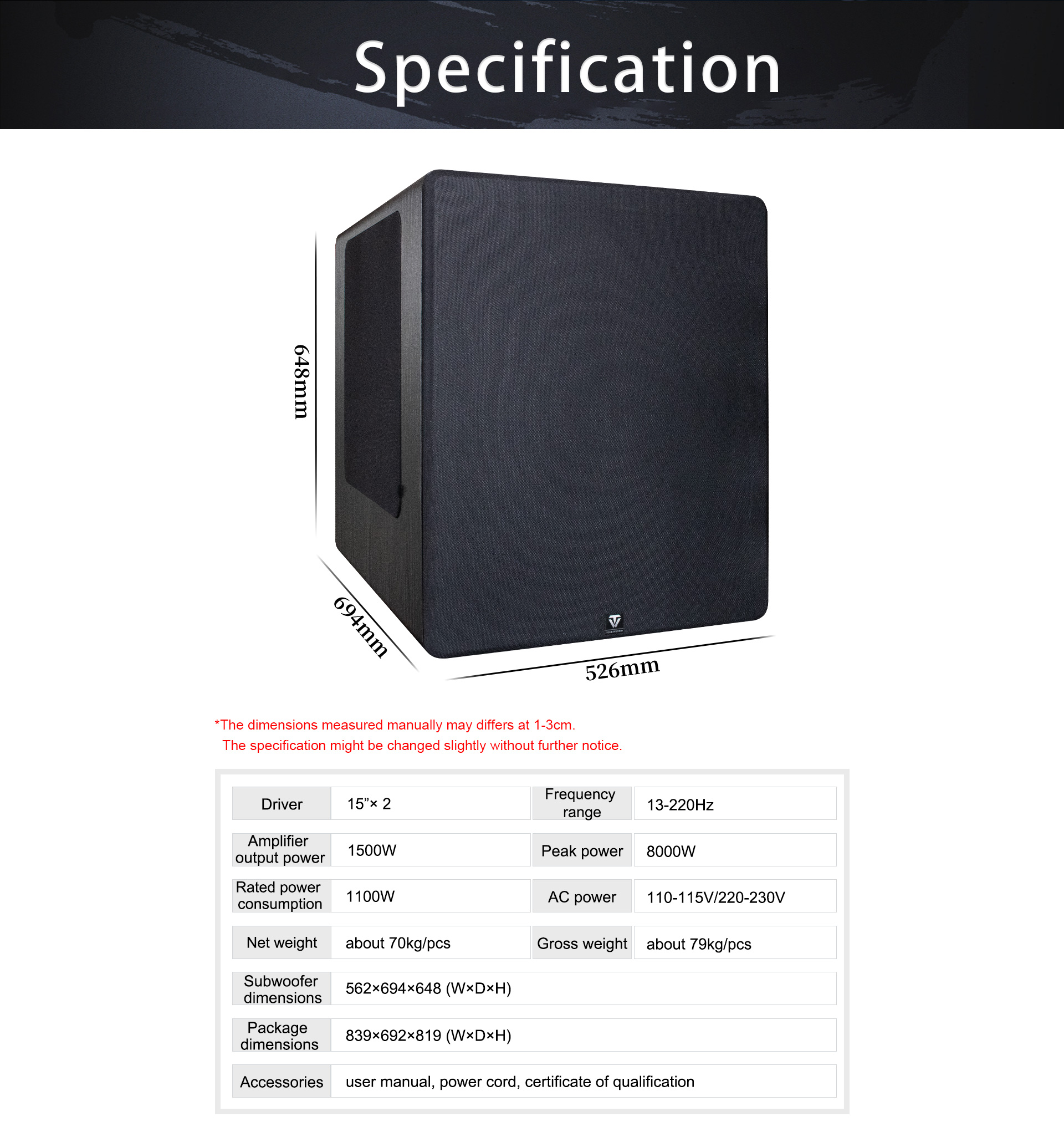

| Model | SW-D8000 | Frequency range | 13-220Hz |

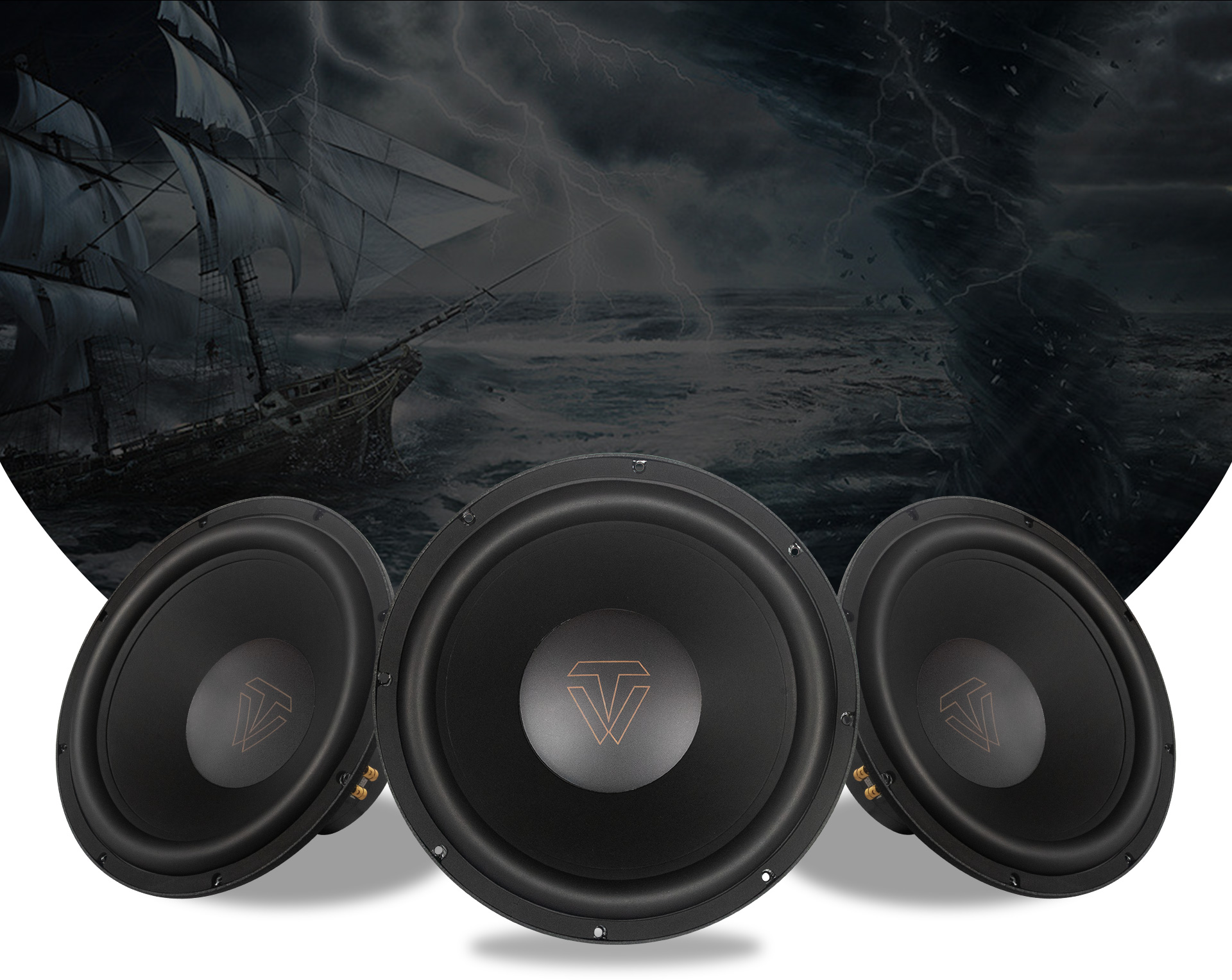

| Driver | 15''×2 | Power supply | 110-115V/220-230V, 50Hz/60Hz |
Output power | 1500W (RMS, 3 ohms) | Peak power | 8000W (3 ohms) |
SPL-max(dB(C), Peak, Music, 1m) | 119 | Rated power consumption | 1100W |
Vd Air volume displacement (L/dm3) | 2.41 | Net weight | about 70KG/pcs |
Gross weight | about 79KG/pcs | Subwoofer dimensions | 562×694×648mm (W×D×H) |
Package dimensions | 839×692×819mm (W×D×H) | Accessories | user manual, power cord, certificate of qualification |
Features:

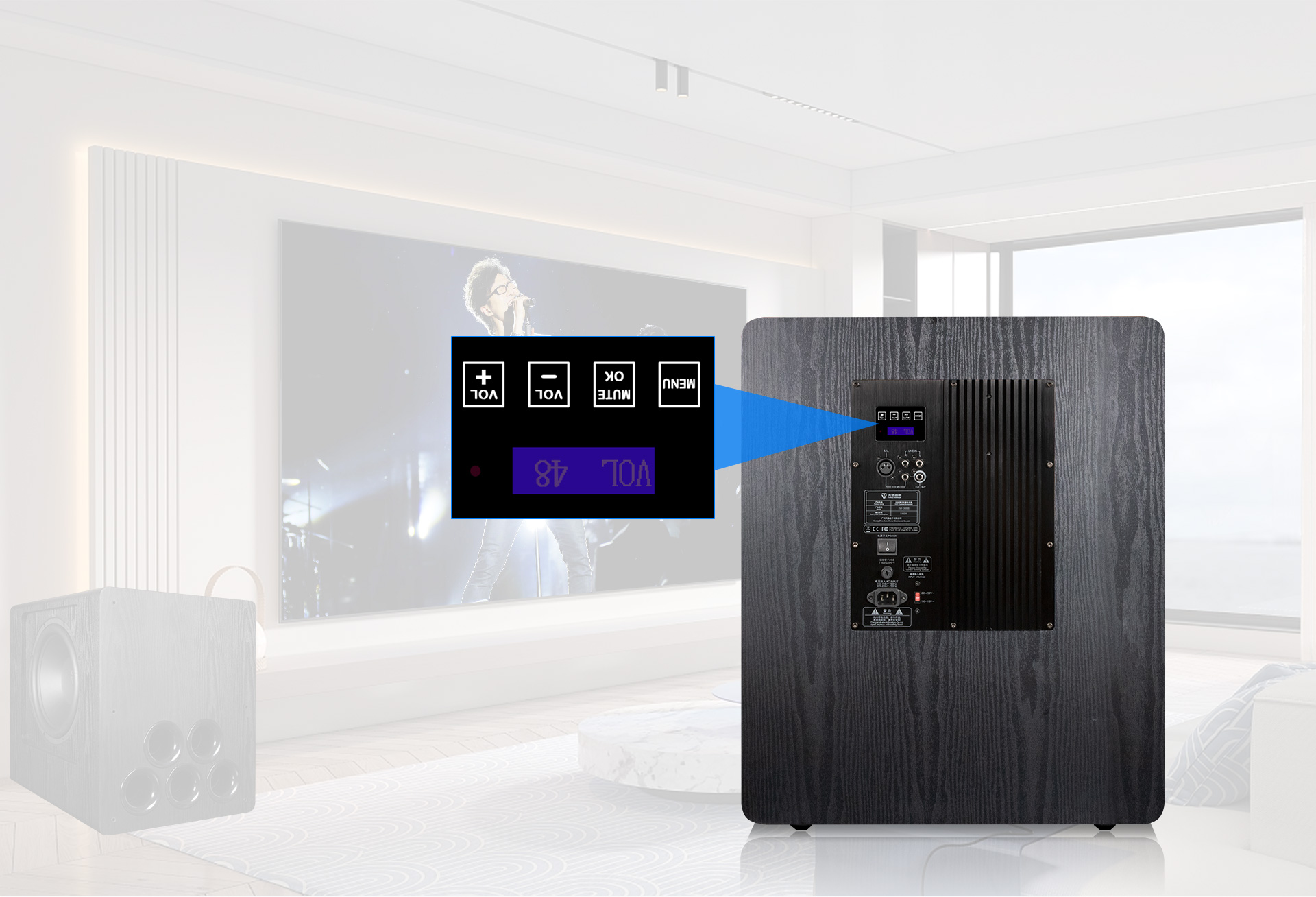

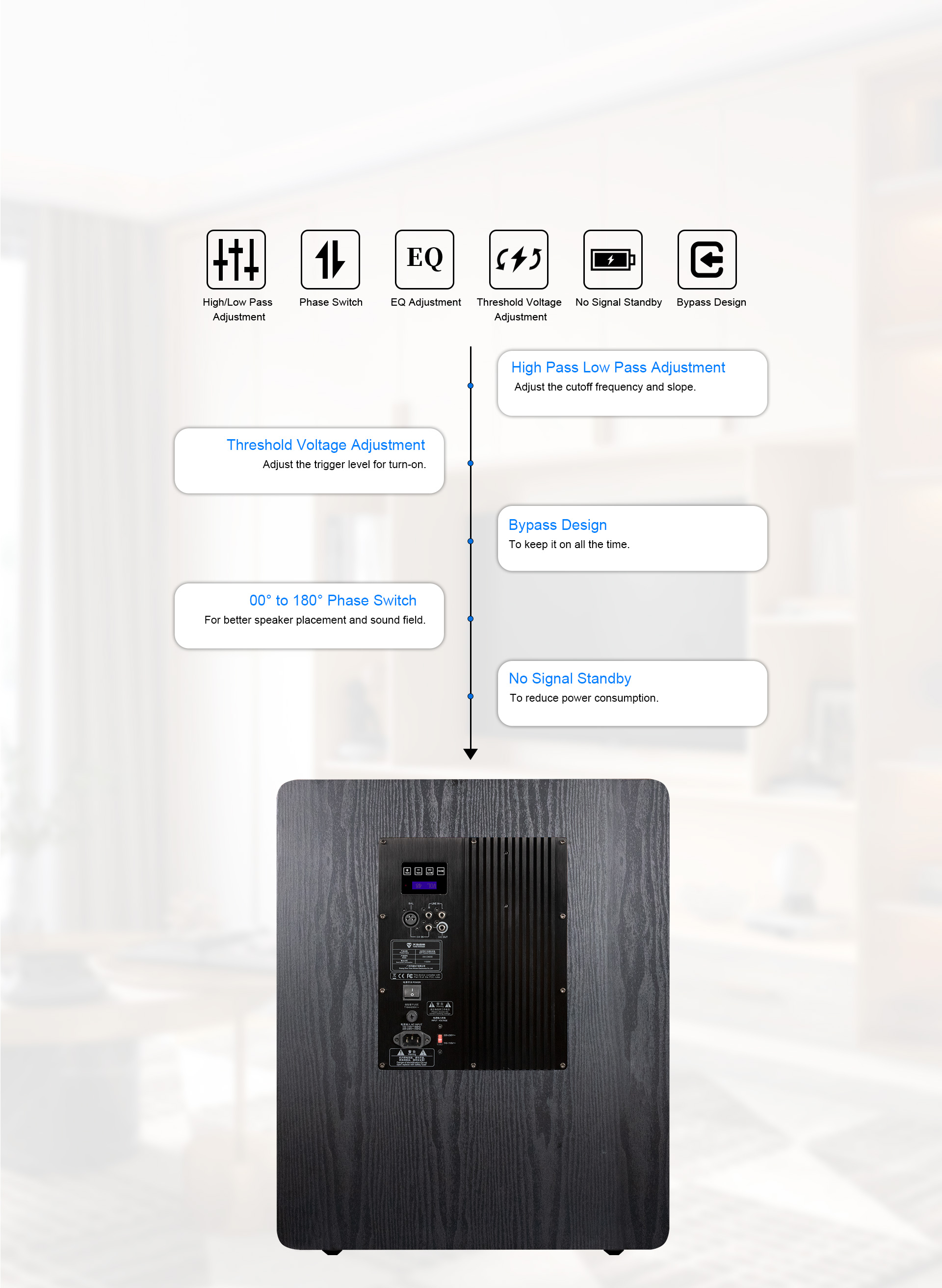

DSP digital processing, LCD display, touch buttons, App control, wireless firmware upgrade, EQ adjustment, frequency range adjustment, 0° to 180° phase switching, balanced input, automatic power saving without signal.
