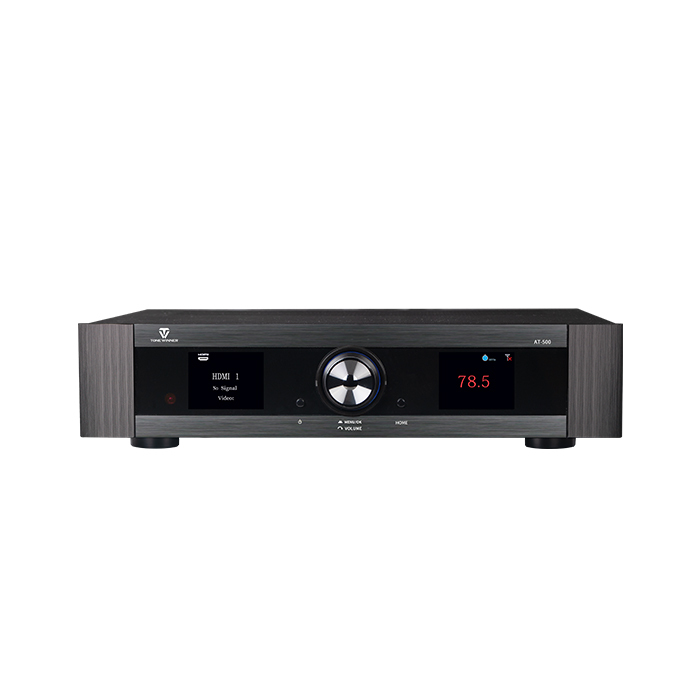

Tonewinner AT-500 8K Dolby Atmos Processor
Introduction
Product features
1. 9.3.4 decoding output.
2. Supports Dolby Atmos, Dolby True HD and all downward Dolby audio formats.
3. Supports DTS:X, DTS-Master and all downward HD audio formats.
4. Supports HDCP2.3, 40G band-width.
5. Supports 8K/60Hz, 8K/120HZ HD video signal.
6. HDMI 6 in 2 out, supports digital inputs of COAX and OPT.
7. ETQ acoustic room calibration, can get parameters from intelligent microphone automatically.
8. Supports OSD menu.
9. Supports APP control.
10. Supports RS232 control.
11. Supports BAL & UNBAL.
Model | AT-500 |
Rate input impedance | 1kΩ |
Decode output | 9.3.4 or 7.3.6 |
Main feature:
1. Support Dolby Atmos, DolbyTrue HD and all backward Dolby audio formats.
2. Support DTS:X, DTS-Master and all backward DTS audio formats.
3. Support HDMI2.1, HDCP2.3.
4. Support 8K, YUV4:4:4, 40GHz bandwidth HD video signal.
5. Support Dolby Vision, HLG, HDR10, HDR10+ video signal.
6. Full balance 7.1.6/9.1.4 and unbalance output 7.3.6/9.3.4 Dolby Atmos signal output.
7. One-button simple operation for EQ room calibration and compensations of speaker distance,delay and sound pressure, automatic calibration and supports user manual adjustment.
8. Built-in music playing device; support multi-level folder arrangement of music files from TFcard and USB disk; support lossless and compressed audio formats including FLAC, APE WAV, MP3, etc.
9. Built-in digital Bluetooth audio receiver.
10. Support App control, infrared remote and Bluetooth remote control.
11. Dual 2.8"display screens, all kinds ofinformation is at a glance.
12. Chinese/English overlay OSD menu.
13. Synchro-reading and display of music lists on mobile phone and TV.
14. Support speaker configurations from 2.0 to 7.3.6/ 9.3.4.

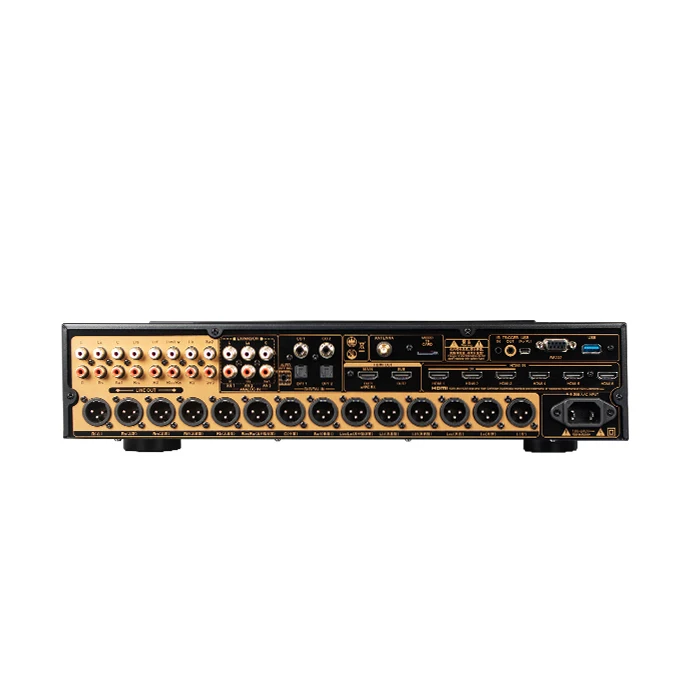

15. HDM16 in 2 out(HDMI1, HDMI2, HDMl3 support 8K), 2 ways of coaxial, 2 ways of opticaand 3 ways of analog inputs.
16. Support 5.1 channel external mixing input, can connect external reverberator.
17. Support RS232 protocol.
18. Support HDMl eARC and CEC.
19. Maximum 1000ms lip-sync adjustment.
20. 5 to 11 band parameters EQ for each channel.
21. Support audio-video matrix subgroup output.
22. New dual-core DSP chip from ADl company.
23. Independent settings and parameter storage for each input channel.
24. Independent EQ selection and volume control for each input channel.
| Model | AT-500 | Decoding output | 9.3.4/7.3.6 |
| SNR | ≥110dB(A weight,1kHZ/1Vrms, ANALOG IN) | THD | ≤0.003% （A weight,1KHz/1Vrms，ANALOG IN） |
| Frequency | 10Hz-65kHz (+1/-3dB, ANALOG IN) | Max power consumption | 30W |
| Separation | ≥90dB (ANALOG IN） | Input level | 4Vrms±1dB (THD=1%, ANALOG IN) |
| Net weight | 4.3kg | Gross weight | 6.3kg |
| Dimension | 431x304x80mm (W×D×H) | Package size | 560x392x165mm (W×D×H) |
