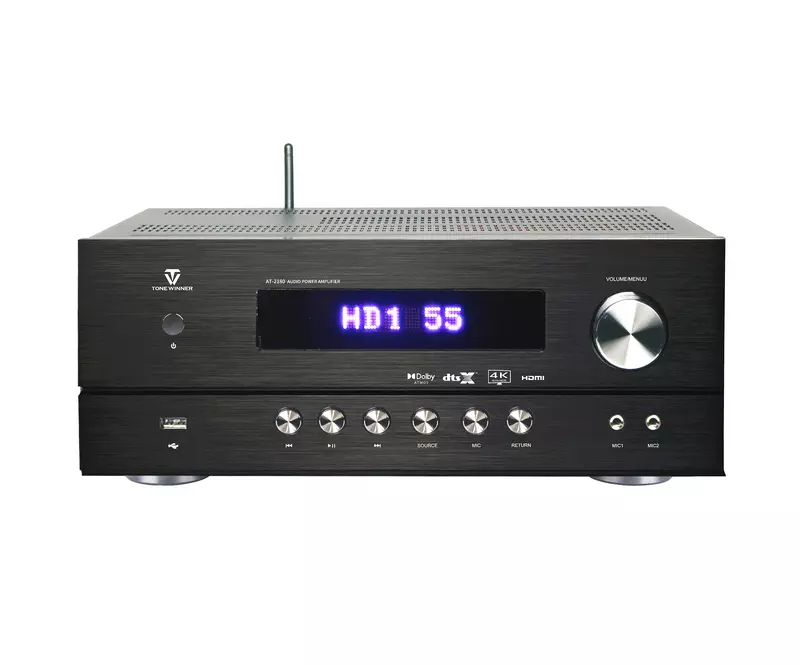

Tonewinner AT-2180 7.3.2 AV theater receiver
AT-2180 is a professional 7 channels home theater AV processor that supports the latest immersive audio formats, including Dolby Atmos, DTS:X and smart phone apps control. It is with an abundant of input and output ports.
Model
AT-2180Channels
7Power
130WG.W.
14.5kg
Features
1.Support Dolby Atmos DolbyTrue HD & all the downward Dolby audio formats.
2. Support DTS:X, DTS-Master & all the downward HD audio formats.
3. Support HDMI2.0 & HDCP2.2.
4. Support 4K/60Hz，RGB 4:4:4, 18GHz full bandwidth video signal, support Dolby Vision and HDR 10+ video signal.
5. Support stacked OSD menu operation display.
6. Support 5.3.2 in total 11 channels Dolby Atmos decoding lineout output.
7. Built-in auto smart room acoustic testing & compensation for spectral characteristic, loudness of each channel & distances between each channel.
8. Built-in audio receiver function.
9. Built-in audio player function, support files playing from TF card & USB disk, support several lossless & compressed audio format files playing, such as FLAC, APE, WAV, MP3 & etc; support multi-layer folder management.
| Model | AT-2180 | Decording output | 7.3.4 |
| Input level | 1Vrms (analog direct) | Frequency response | 10Hz-20kHz（+3/-3 dB） |
| Gain | ≥40dB | Distortion | ＜0.05% |
| Impedance | 8 Ω (adapt 4-8Ω) | Output power | 130 RMS/8Ω（THD=1%, per channel, 1kHz）; 210 RMS/4Ω（THD=3%, per channel, 1kHz） |
| Net weight | 12.4 kg | Gross weight | 14.5 kg |
| Voltage supply | ~220V/50Hz | Dimension | 430×411×160mm |
| Package size | 545×491×257mm | Accessory | user manual, remote control, HDMI cable certification, battery, power cord |
