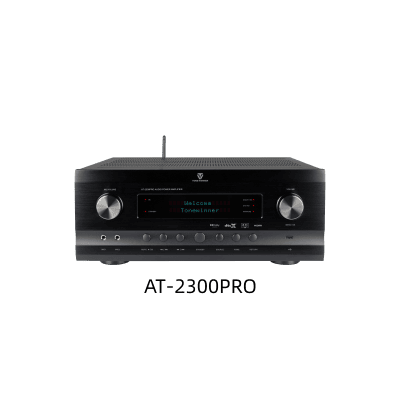

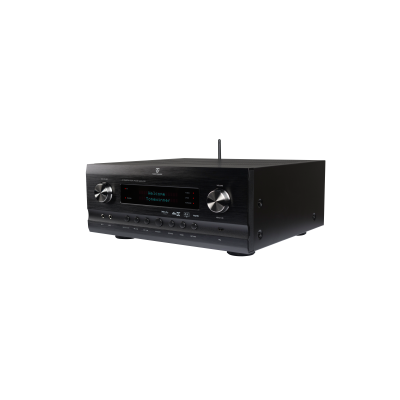

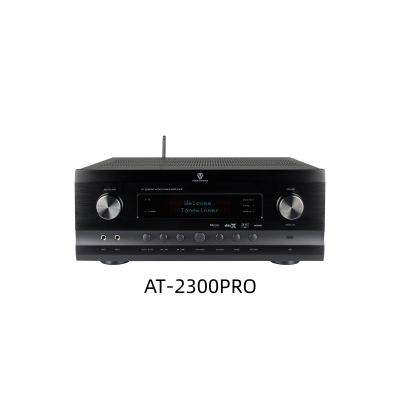

Tonewinner AT 2300 Pro 7.3.4 Dolby Atmos decode 4K cinema amplifier
KES250,000.00
Tags:
AT-2300PRO is a Dolby Atmos theater & Karaoke integrated amplifier. It's a all in one machine which combines home theater system, personal music center and professional Karaoke system. AT-2300PRO's professional 5.1.2 channel immersion karaoke system is pioneering in audio industry. Support audio return channel (ARC), which can make smart TV turn into song-order machine. As a top 10 audio brand in China, Tonewinner has 30+ years experience in designing and manufacturing acoustic products. As an original supplier, Tonewinner always warmly welcomes distributors, partners and customers around the world.
Model
AT-2300PRO
Channels
7.3.4
Power
3*230W (L/R/C) + 4*120W (Others)
G.W.
18KG
Model
AT-2300PRO
Channels
7.3.4
Power
3*230W (L/R/C) + 4*120W (Others)
G.W.
18KG
Product Details
Main Features
- Dolby Atmos, DolbyTrue HD and all downward Dolby audio formats.
- DTS:X, DTS-Master and all downward HD audio formats.
- HDMI2.0, HDCP2.2 and HDMI eARC.
- 18GHz full bandwidth video signal, supports 4K/60Hz, Dolby Vision and HDR 10 video signal.
- Stacked OSD menu operation display.
- Support 7.3.4 in total 13 channels Atmos decoding lineout output.
- Built-in Karaoke and multi-tap DSP mixing processor.
- Built-in auto smart room acoustic testing and auto compensation for spectral Characteristic, channel loudness and channel distances.
- Built-in Bluetooth audio receiver function.
- Built-in audio player function, support files playing from TF card & USB disk, support several lossless & compressed audio format files playing, such as FLAC, APE, WAV, MP3 & etc; support multi-layer folder management.
- Smart phone App control.
- Support over 10 kinds of speaker configurations from 2.0 to 7.3.4.

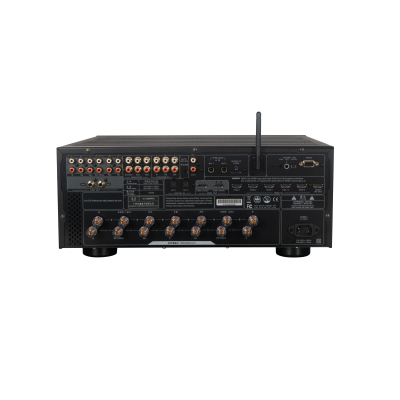

- HDMI 6 in 2 out, also 2 x COAX, 2x OPT and 3 x ANA inputs.
- 5.1 channel external mixing inputs, can add external mixer.
- Built-in L, R, C: 3X240W, Rest channels: 4X120W. （8Ω，RMS）Class H high power HiFi amplifier, can drive 5.2 speaker system directly.
- RS232 integrated controller.
- HDMI ARC, eARC, and CEC.
- Max. 1s lipsync adjustment.
- Each channel has as many as 7 to 11 band parameters EQ.
- Random combination of video and audio signals from different input sources.
- Use the latest ADI new due core DSP.
- Independent settings and parameters storing for input channels
Parameter
Model | AT-2300PRO | THD | ≤0.05% |
Channel | 7.3.4 decode/5.1.2 speaker | SNR | ≥95dB (A-weighted, pure mode) |
Frequency response | 20Hz-20kHz (+1/-3dB) | Power output | L/R/C, 230W Rms/8Ω (THD=1%, 1 CH driven, 1kHz) other channels, 120W Rms/8Ω (THD=1%, 1 CH driven, 1kHz) |
Impedance | 8Ω | Gain | ≥38dB (pure mode) |
Power voltage | AC 110-115V/60Hz, 220-230V/50Hz | Warranty | 1 year |
G.W. | 18kg | N.W. | 16.3kg |
Machine dimension | 431x402x178mm(W×H×D) | Package dimension | 546x494x258mm(W×H×D) |
Application | living room,bedroom, home theater, etc | Accessories | manual, certificate, remote control, power cord, HDMI cable, battery |
