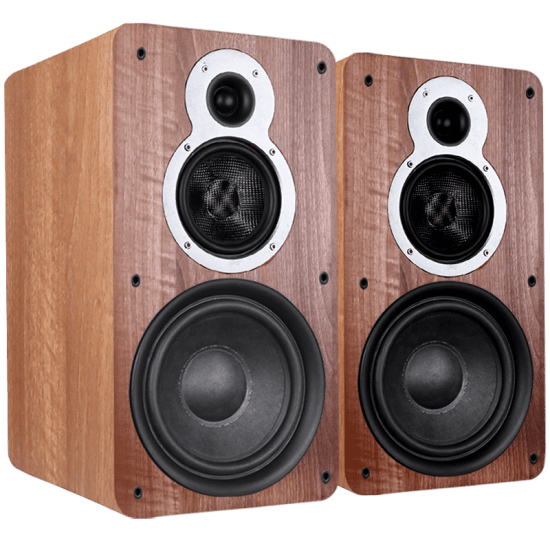

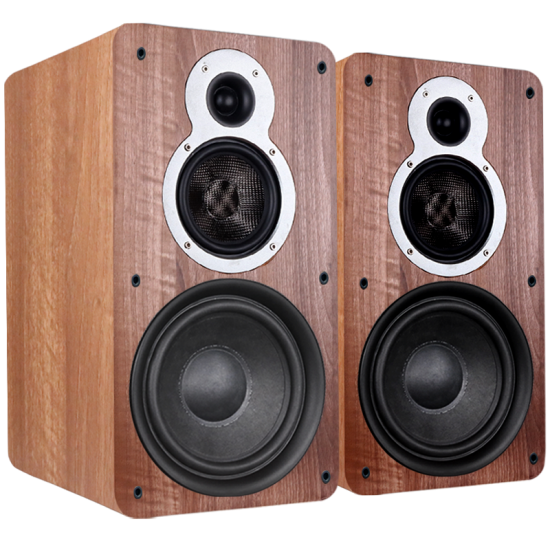

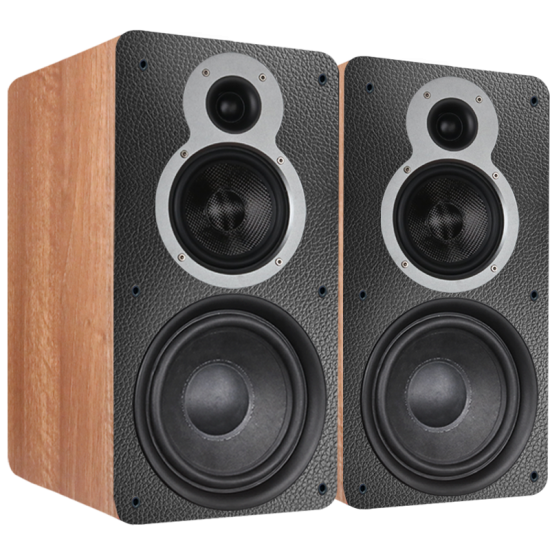

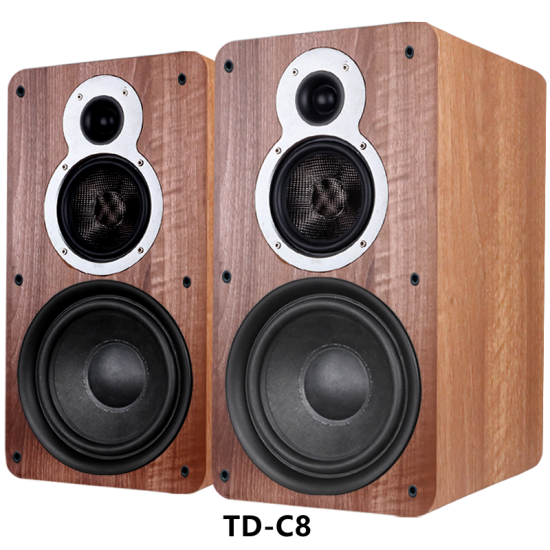

Tonewinner 440W Hi-Fi TD C8 Bookshelf Speakers
The TD-C8 is a heavy weight and high-end active bookshelf speakers designed specifically for high-definition home theaters. It is easy to use. Powerful and low-frequency. As a top 10 audio brand in China,
Model
TD-C8Power
50W-220WG.W.
28KG/PairsDriver
1
Model
| TD-C8
| Speaker unit
| 1"×1+5"×1+8"×1
|
Frequency range
| 38Hz~22KHz
| SNR
| 85dB
|
Power range
| 50W-220W
| Crossover point
| High-mid frequency 3500Hz, Mid-bass frequency 800Hz
|
Tweeter unit
| 1" Tetoron,
Paraboloid aluminum iron boron magnet, custom radiator
| Middle unit
| 5”Carbon Fiber Woven Basin, KSV voice coil
|
Bass unit
| 8” Long Stroke Mica Mixed Semi-Loose Pressed Paper Cone
| Cabinet material
| MDF
|
Cabinet type
| low frequency reflex
| Input
| single terminal
|
PMPO
| 440W
| Impedance
| 4Ω
|
Size
| 260*485*310mm
| N.W
| 12.5kg/pcs
|
1. Appearance Design
TD-C8 bookshelf speaker is made of MDF enclosure and decorated with walnut wood veneers, and the corners are polished to achieve sleek design.
2. Speaker Unit Design
The 1-inch tweeter unit adopts neodymium magnet and customized aluminum alloy radiator to drive high power output. The 5-inch mid-range unit’s cone adopts double layer of carbon fibre to make it thin but durable. The cone of the 8-inch bass unit is made of mica with high intensity and damping. Working with the durable rubber surround part, the bass unit handles large amplitude of low frequency.
3. Main Features
Three-way three-unit design for accurate sound location and analytical sound layer. The speaker units adopt aluminum alloy frame, high-temperature-resistant aluminium-magnesium alloy former, 5N oxygen free copper wire, high quality voice coil and big permanent magnet. TD-C8 bookshelf is going to bring you sonorous bass, bloat mid-range and bright treble with more depth and details.
