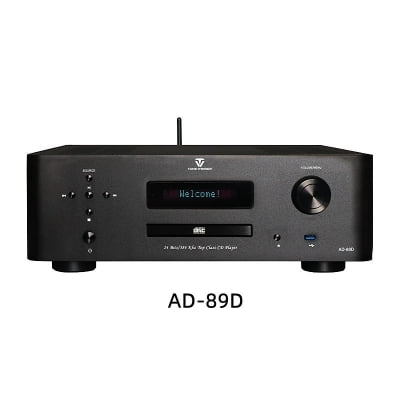

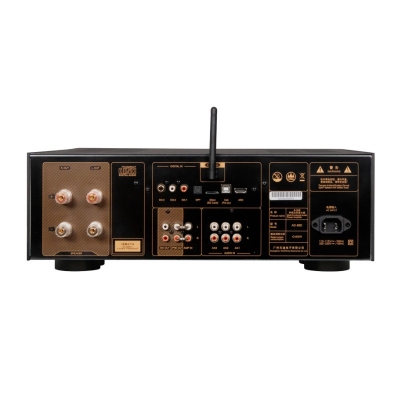

Tonewinner 2.1 PC Hi-Fi HDMI ARC integrated amplifier
KES200,000.00
Tags:
Tonewinner 2.1 PC Hi-Fi HDMI ARC integrated amplifier supplier
AD-89D is an Hi-Fi integrated amplifier, which designed with Tonewinner's 30 years technical experience,and to meet the market desire of multi-functions.This product combined with multi-functions such as CD player, streaming media player, preamp decoder and amplifier. The circuit is mature and stable, the materials are solid and high quality, making the product reliable and durable.The sound is round and delicate, the cost performance is extremely high, it is the representative masterpieces of the new generation of digital Hi-Fi amplifier.
Main functions
- CD player
- Supports 128g U disk, TF card local playings, supports main lossless music formats of WAV, flac, APE etc.
- Supports high quality Bluetooth transmission, can connect to mobile phone,pads, computers equipment that has BT output.
- Supports USB-Audio input, can be used as high end external sound cards for computer.
- Supports HDMI-ARC transmission, can connect with TV to realize audio playback. 3 ways Coax and 1way Optical digital input, support PCM decodes.
- 3 ways analog input, 1 way pure amplifier input.
- Supports SE-OUT ultra subwoofer out, can connect to powered subwoofer. Independent circuit design for preamp and amplifier. Can take or plug out the Uloop on rear panel to realize pure preamp or pure amplifier.
- Supports tweeter and subwoofer adjustments.
- Supports APP and remote control.
- supports 110V/220V auto detect and switch.
Main Features
- Adapts low distortion high speed Hi-Fi ultra Class A circuit design, with high conversing energy to maintain round and delicate sound quality.
- Perfect amplifier protecting circuits: short protection, overheat protection, high frequency protection and direct current protection.
- Metalwork structure with multi individual sealing chambers, can reduce free electromagnetic waves and signal interference.
- Metalwork design add two heavy metal parts to the bottom of mechanism and middle part of chassis, that guarantee double strong supports to the mechanism.
- one 350VA high quality tordial transformer, up to 40000uF audio capacitors,and big audio amplifier tubes parallel outputs to provide extremely high current output ability.
- power output for each channel: 130W/Ω
- High frequency is clean, bright and transparent. Mid frequency is mellow with strong resolution. Low frequency is springy and accurate in deep.
Parameter:
Model | AD-89D | THD | ≤0.05%(A weight, analog direct) |
Channel | 2.1 | SNR | ≥95dB(A weight, analog direct) |
Frequency | 10Hz-50kHz(+1/-3dB) | Power Output | 130W(8Ω, 1kHz, one channel) |
Maximum power consumption | 450W/8Ω | Gain | ≥41dB (A weight, analog direct) |
Rated Impedance | 8Ω | Power | ~110V-115V (60Hz)/~220V-230V (50Hz) |
G.W. | 14.8kg | N.W. | 12.7kg |
Dimension | 430×397×151mm(W×D×H) | Packaging dimension | 546×483×232mm(W×D×H) |
Product Details
Model
AD-89DChannels
2.1Power
2x130WTHD
≤0.05%(1KHz,A weight)
