Teufel Ultima 40 active 2.1 With Active Subwoofer
Description
Speak about the future of 2.1 Stereo sets that are active and powered and an active subwoofer is added to the combination to make this a perfect 2.1 set.
The advantages at a glance
- Top class active 3-way speaker pair, no amplifier or AV receiver required
- Acoustics includes all improvements from the new ULTIMA series for the most detailed sound with good drive
- Integrated amplifier with an impressive 2 x 130 watts makes external amplifiers superfluous and frees up space
- With Bluetooth aptX® for wireless music streaming in CD-like quality from Spotify, YouTube (lip sync) etc.
- With HDMI ARC for the 1-cable connection of the TV, also supports Dolby Digital multi-channel formats
- Dimmable display, equalizer, night mode, operation via remote control or direct selection buttons
- Additional inputs for game consoles or CD players, USB SoundCard for PC connection, subwoofer option
- System optionally expandable with rear boxes EFFEKT to 4.0 surround set, Dynamore® Virtual Center simulates center, incl. 5 m speaker cable
one for all
From HDMI to analog: the active ULTIMA version offers different connections for up to five players – without the need for additional devices. Additional HDMI players can be easily connected to the TV set.
TV sound directly via HDMI
With just one HDMI cable between the box and the TV, the active floor-standing speakers become a complete TV sound system. Nothing stands in the way of the finest sound in sports, shows and films.
Control the beat

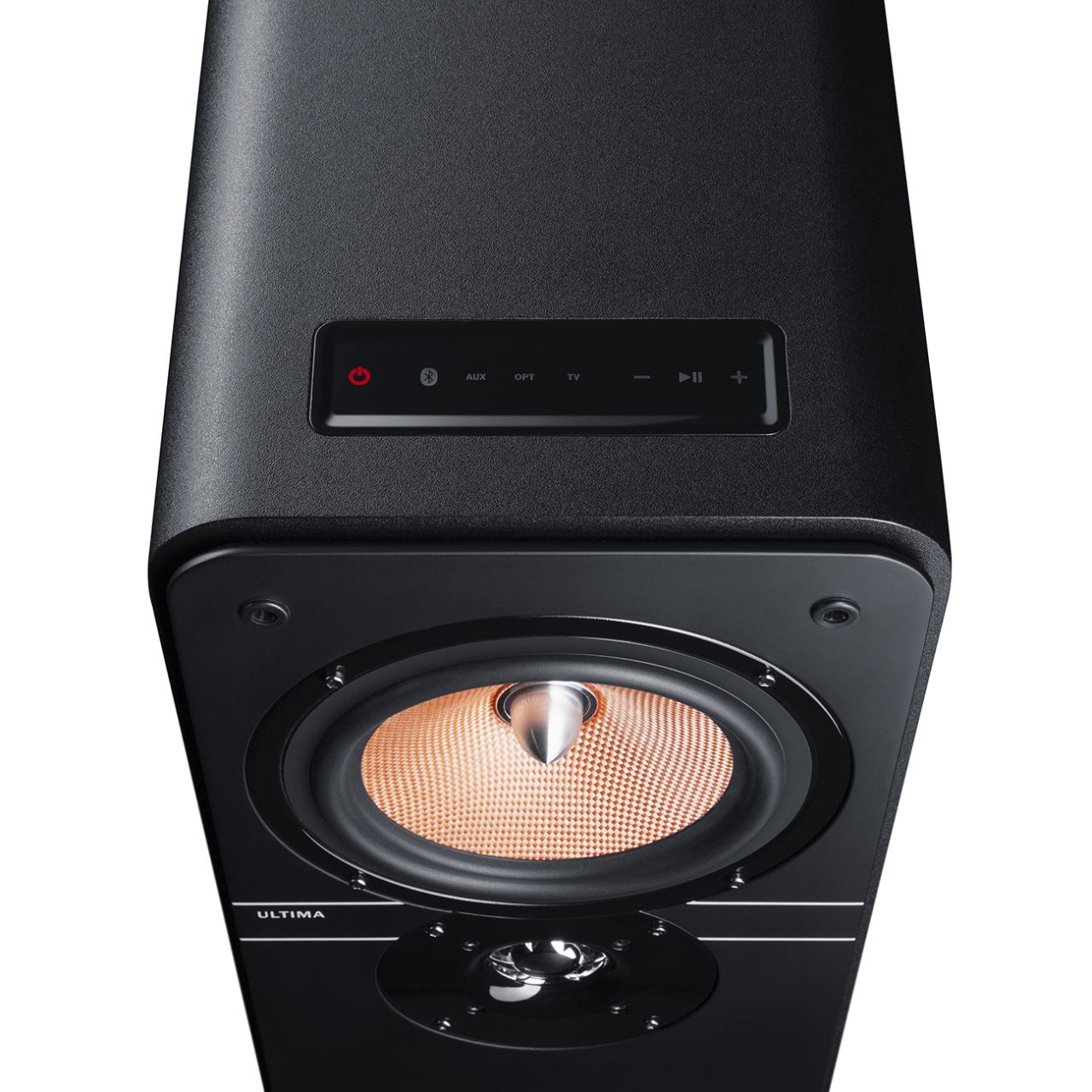

The operation of the ULTIMA 40 Active adapts to your wishes: you control the ULTIMA 40 Active either via the integrated control panel, the remote control, via Bluetooth or with HDMI-CEC via the usual TV remote control. A dimmable display provides direct information about the status of the sound system.
The power from within
The ULTIMA 40 Aktiv generates its own sound power. This is achieved with an integrated class D amplifier that can generate an impressive total output of 260 watts. External amplifiers are therefore superfluous.
Bluetooth: wireless in high quality
Our products guarantee a clean, stable Bluetooth connection with minimal power consumption. Ranges of over 10 meters are possible.
scope of delivery
- 1 5.0m subwoofer cable C3550W Black
- 1 active subwoofer S 6000 SW black
- 1 black power cable
- 1 floorstanding loudspeaker UL 40 Mk3 18 (pcs.) Black
- 1 fabric frame with logo for UL 40 Mk3/UL 40 Active Mk2
- 1 red rubber feet (4 pcs.) for UL 20/40 Mk3 18
- 1 floorstanding speaker UL 40 Active Mk2 18 (pcs.) Black
- 1 fabric frame with logo for UL 40 Mk3/UL 40 Active Mk2
- 1 red rubber feet (4 pcs.) for UL 20/40 Mk3 18
- 1 5.0m speaker cable red
- 1 Ultima 40 Active Remote Control Black
- 1 black power cable
Dimensions
| Broad | 21.5 cm |
| Height | 106.5 cm |
| depth | 32 cm |
| Weight | 20kg |
Speaker Specifications Passive Speaker
| suitable for AV receivers | Yes |
| Suitable for banana plugs | Yes |
| Bi-amping/bi-wiring | Yes |
| Maximum cable diameter | 4mm |
| Compensation hole (position) | rear |
| vents | 2 |
| Front cover detachable | Yes |
| housing material | mdf |
| housing surface | foil |
| Net Internal Volume | 54L |
| spikes prepared | Yes |
| Integrated stand | Yes |
| Tweeters (amount per box) | 1 |
| Tweeter (diameter) | 25mm |
| tweeter (material) | tissue |
| Midrange (number per box) | 1 |
| midrange (diameter) | 165mm |
| midrange (material) | kevlar |
| Woofers (number per box) | 2 |
| woofer (diameter) | 165mm |
| woofer (material) | glass fiber |
| Durability (IEC – Long Term) | 120W |
| Sensitivity (2.83V/1m) | 87dB |
| Frequency range from/to | 45 – 20000Hz |
| Impulse capacity (IEC – Short Term) | 200W |
| Maximum sound pressure | 108dB/1m |
| nominal impedance | 4 – 8 ohms |
| acoustic principle | 3-way system |
| housing construction | bass reflex |
Floor-standing speaker UL 40 Active Mk2 18 (pc.)
| Suitable for banana plugs | Yes |
| Maximum cable diameter | 4mm |
| Front cover detachable | Yes |
| housing material | mdf |
| housing surface | Foil, matte |
| spikes prepared | Yes |
| Integrated stand | Yes |
| Tweeters (amount per box) | 1 |
| Tweeter (diameter) | 25mm |
| tweeter (material) | tissue |
| Midrange (number per box) | 1 |
| midrange (diameter) | 165mm |
| midrange (material) | Kevlar fiberglass |
| Woofers (number per box) | 2 |
| woofer (diameter) | 165mm |
| woofer (material) | cellulose fiberglass |
| Frequency range from/to | 39 – 20000Hz |
| housing construction | bass reflex |
| operating voltage | 230V |
| standby function | Yes |
| Output Power Maximum Satellite Channel | 130W |
| Total Output Power (RMS) | 260W |
| sound adjustment | Yes |
| amplifier technology | Class D |
| amplifier channels | 2 |
| performance measured at | 4 ohms |
Dimensions
| Broad | 21.5 cm |
| Height | 106.5 cm |
| depth | 32 cm |
| Weight | 21.2kg |
Connections
| Subwoofer output | 1 |
| auxiliary | Yes |
| RCA input stereo | 1 |
| Audio inputs- HDMI | Yes |
| Digital inputs optical | 1 |
| 2.0 USB sound card | Yes |
| Bluetooth | Yes |
| Bluetooth aptX | Yes |
| Micro USB B | Yes |
| HDMI ARC CEC | Yes |
Subwoofer Specifications
Dimensions
| Broad | 37 cm |
| Height | 47.4 cm |
| depth | 54 cm |
| Weight | 23.6kg |
Subwoofer specifications
| operating voltage | 230V |
| Automatic on/off | Yes |
| Maximum power consumption | 250W |
| Mains cable IEC socket | Yes |
| protection class | 2 |
| Memory for settings when disconnected from the grid | Yes |
| standby function | Yes |
| standby power consumption | 0.4W |
| input level control | Yes |
| Frequency Control (Range) | 20-50Hz |
| level control | Yes |
| phase control | Yes |
| Lower cutoff frequency (-3 dB) | 25Hz |
| Output power “sine” subwoofer channel | 240W |
| amplifier configuration | 1.0 |
| amplifier technology | Class D |
| amplifier channels | 1 |
