MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER
MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER
MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER
MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER
MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER
MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER

MARANTZ MODEL 50 BLACK INTEGRATED AMPLIFIER

KES250,000.00
Tags:
The MODEL 50 is the perfect integrated amplifier for your system. Thanks to the HDAM-SA3 circuit and specially developed current feedback technology from Marantz with 70 watts per channel, the MODEL 50 supplies every speaker with impressive sovereignty.

Powerful and precise Class A/B amplifier
The high-current amplifier of the MODEL 50 can easily handle even demanding speakers thanks to its parallel-connected power transistors.

Six analog inputs
Thanks to numerous analog inputs, numerous source components can be connected to the MODEL 50. Particularly generously dimensioned connections were used for the CD and phono input.

MM phono
The built-in MM phono stage has been carefully tuned to reveal never-before-heard details of your records.

Stereo preamplifier output
The MODEL 50 grows with your ambitions. The stereo preamplifier output uses discrete HDAM technology with external amplification.

Powerful and precise
Thanks to the precisely designed Class A/B amplifier, the MODEL 50 amplifier drives your speakers with impressive authority and reveals details never heard before.

Analogue simplicity
The MODEL 50 was developed with the focus on analogue construction. The absence of digital audio technology ensures completely intuitive operation. In addition, unwanted interference from complex digital circuits is eliminated.

Exquisite design
The MODEL 50 amplifier is absolutely modern and yet timeless. With important aesthetic features such as symmetry, warmth and a pleasant feel, we are breaking new ground in audio device design, but always respecting the heritage of the legendary Marantz classics.


Specifications

Equipment
Channels: 2
Current feedback technology
Phono EQ: Marantz Musical
HDAM version: SA3, SA2
Power supply: toroidal core
High-quality audio components
Selected components
Symmetrical circuit board layout
Heat sink made of extruded aluminum
Balance / bass / treble

Other
Linear power supply
Linear volume control
Schottky diodes
Input buffer amplifier (CD only)
Solid heat sinks
System block shielding: none
Double-layer base plate: 3
Low-noise OLED display
Source direct
Power amplifier direct

Inputs/outputs
Audio inputs: 6
Phono input: MM
Audio outputs : 1
Pre-out / Main-in: yes + subwoofer / no
Power amp direct Input
Cinch, gold-plated
Speaker A / B
Speaker terminals: Marantz SPKT-1+
Number of terminals: 4
Marantz remote control bus
Headphone output

Technical specifications
Output power (8 / 4 Ohm RMS): 70 W / 100 W
Frequency response: 5 Hz–100 kHz
Total harmonic distortion: 0.02 %
Damping factor: 100
Input sensitivity MM: 1.4mV / 47 kOhm
Signal-to-noise ratio MM: 87 dB
Input sensitivity High level: 185 mV / 16 kOhm
Signal-to-noise ratio High level: 116dB(2V input)
Input sensitivity Power Amp Direct IN: 1.5V / 15 kOhm
Signal-to-noise ratio Power Amp Direct IN: 125 dB
Treble control: ± 10 dB at 15 kHz
Bass control: ± 10 dB at 50 Hz

General
Metal front
Power consumption in W: 220
Standby power consumption in W: 0.3
Automatic power off
Replaceable power cable

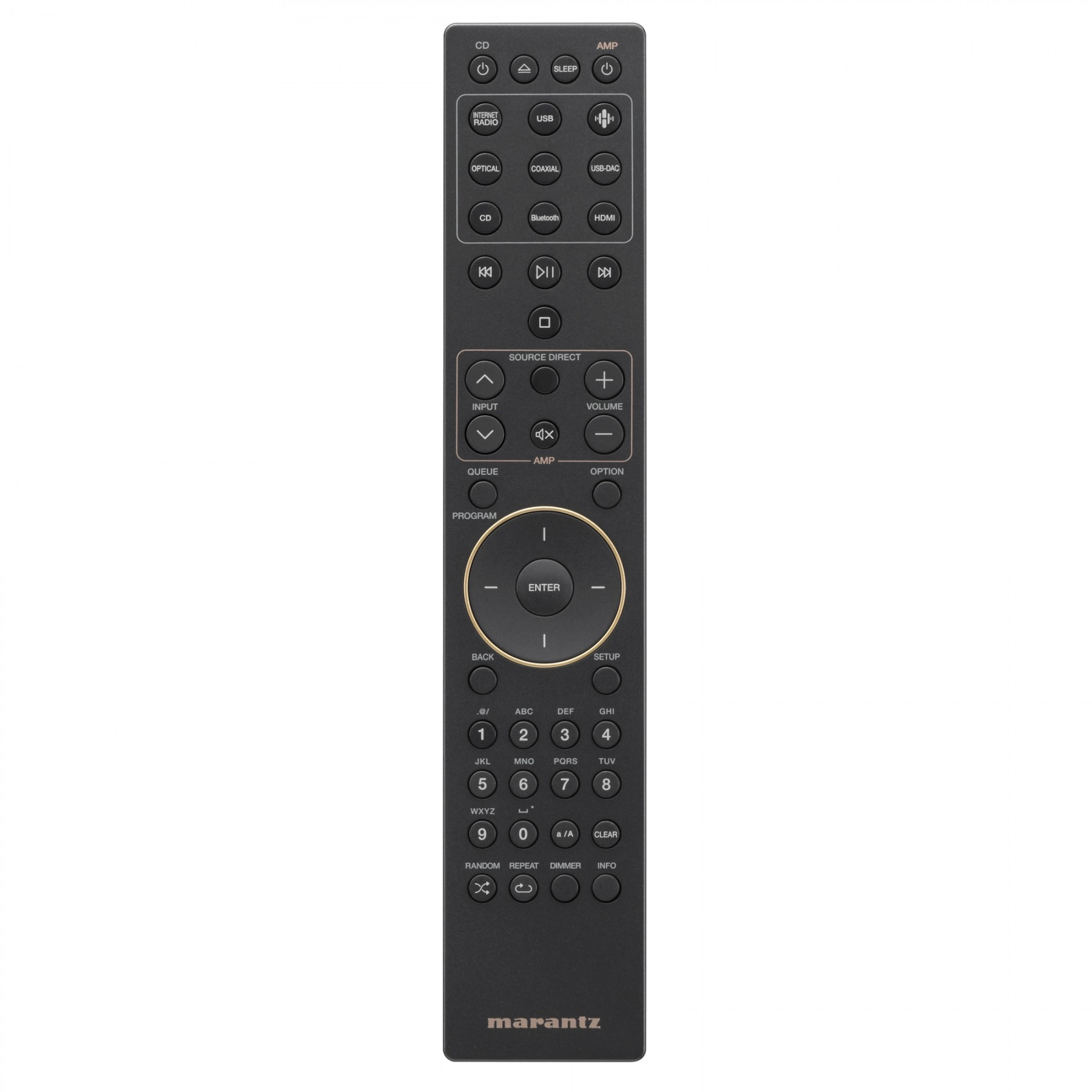

Remote control: RC003PMND
System remote control
Maximum Dimensions (W x D x H): 442 x 431 x 130 mm
Weight: 14.2 kg
