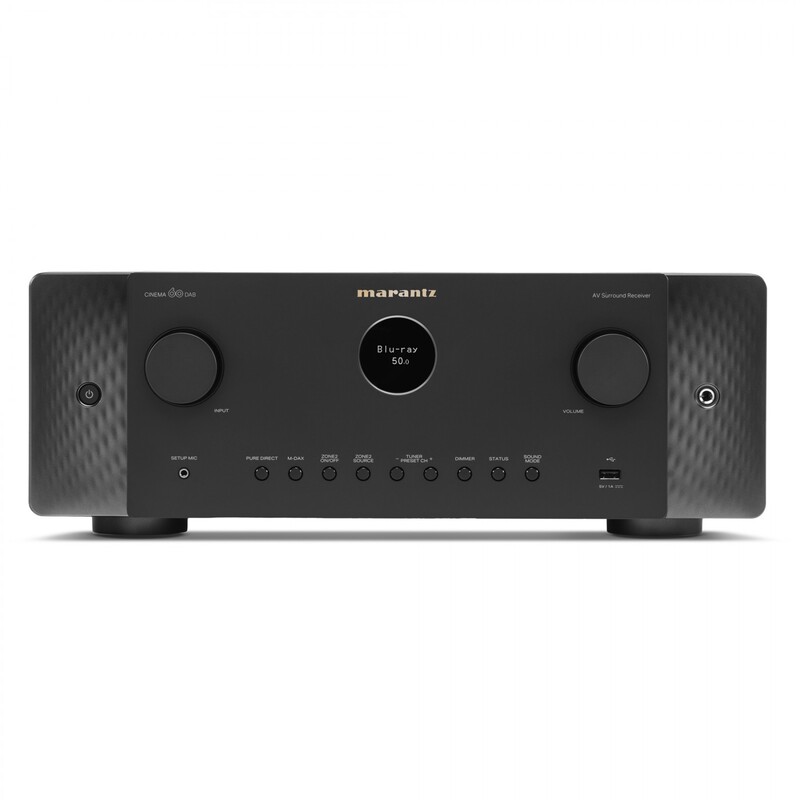

Marantz Cinema 60 7.2 AV Receiver with 8K Video

Impressively room-filling, warm and rich sound with lifelike dynamics is the hallmark of the legendary Marantz sound.

Leading technology
With the latest immersive audio formats, 8K video, as well as room optimization, streaming and other technologies, the CINEMA 60 simplifies and enhances your listening experience.


The iconic Marantz porthole display, symmetrical lines and displays of the CINEMA 60 combine timeless design principles with modern elegance.

Customizability
With a flexible speaker arrangement and carefully selected connectivity and fine-tuning options, you can customize the CINEMA 60 to suit your needs.

Easy to
use The included remote control, easy-to-access controls on the front of the device, and an intuitive setup wizard make it a breeze to use.

Compatibility
Six HDMI inputs, digital, analog, and phono inputs, as well as speaker and preamp outputs, provide connectivity to virtually all of your existing components.

Upgradability
Thanks to extensive input and output options and a powerful software ecosystem, the CINEMA 60 DAB can easily accommodate any expansion of your home cinema.

Specifications

POWER AMPLIFIER
Number of Powered Channels: 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 100 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 200 W
70% Guarantee
Discrete Power Amplifier
Amplifier Topology: Class A/B
Bi-Amp Drive: assignable

MULTICHANNEL SURROUND TECHNOLOGIES
DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Max Number of Processing (Preamp) Channels: 7.2

Inputs/Outputs
HDMI Inputs/Outputs: 6 / 2
Analog In / Fixed Level Out: 4 in / 0 out
Phono (MM) Input
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Output: Analog / Digital: 1 / 0
Multichannel Preamp Out: 7.2
Subwoofer Output: 2
Number of Speaker Terminals: 7
Speakers A/B: assignable
Multi-Room Speaker Connections: assignable
Front Inputs: USB-A
USB Audio
FM Tuner with RDS
DAB+ Tuner

HDMI
Total HDMI Inputs / No. Support 8K: 6/3
HDCP2.3 support
HDMi outputs Main Zone/Zone: 2/1
HDMI Upscaling: 1080P/4K to 8K
Audio Return Channel for TV Sound (ARC): eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming
Variable Refresh Rate / Quick Frame Transport
HDMI Pass-Through Standby HDMI
Control (CEC)
Auto LipSync

PERFORMANCE TECHNOLOGIES
Hyper Dynamic Amplifier Modules (HDAM) (List version)
Pure Direct Mode
Gold Plated RCA Terminals

Acoustic / Room Correction
Audyssey: MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume
Variable Cross Over
Optimized Bass Redirection

MUSIC FILE SUPPORT
Lossy Formats: MP3 / WMA / AAC
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio: 2.8 MHz / 5.6MHz
Gapless Playback: FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2
Network Audio Sharing

STREAMING SERVICES
HEOS Multi-room and Streaming
AirPlay Audio Streaming: AirPlay2
Internet Radio: TuneIn
Spotify*: Spotify Connect
Pandora
SiriusXM
Other Streaming Services *: Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested

NETWORK CONNECTIVITY
Ethernet Ports
Wi-Fi (include version / band)
Bluetooth (Include version)
Bluetooth Re-transmit for Bluetooth headphones

SMART HOME INTEGRATION AND CONTROL
Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android): Marantz AVR App
HEOS Multi-Room Integrated
HEOS Link Compatibility: IR/ IP
Multi-Room zones: 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2Ch / Yes
/ Yes Zone Audio Output: Speaker / Preout
Zone HDMI Output from HDMI Source
Control Connectivity: IP Control / RS232 Control / Web Control / App Control
IR Flasher In
Marantz Remote Bus
DC Trigger Output: 1
HDMI Diagnostics

Other
Front Display: port hole OLED
Primary Display Size (diagonal in/mm):
Secondary Display Size (diagonal in/mm):
GUI languages: 9
Installation wizard
Smart Select on Remote
Firmware update via network / USB
ECO mode
Automatic shutdown
Sleep Timer
