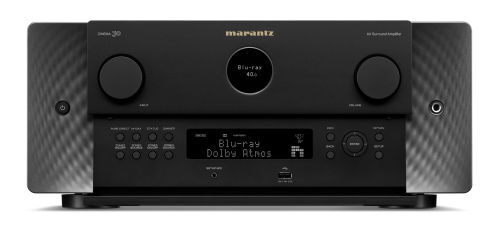

MARANTZ CINEMA 30 BLACK HOME THEATER RECEIVER
Designed for peak performance
Decades of tradition, timeless design and powerful technology make Marantz receivers and amplifiers from the CINEMA series the basis for particularly sophisticated home cinemas around the world.
Exclusive design inspired by classic Marantz principles.
Hi-Fi technologies such as HDAM-SA2, the symmetrical mono-block design of the power amplifier and the power supply with toroidal transformer enable the CINEMA 30 to achieve a level of performance that is rarely found among AV amplifiers.
Carefully thought-out connection options, numerous speaker configurations and the room calibration function allow you to adapt the CINEMA 30 to your individual preferences.
Seven HDMI inputs plus digital, analog and phono inputs, speaker and preamp outputs and even an analog video input ensure that you can connect virtually all of your existing components.
HEOS® Built-in has a search function that allows you to access and stream from the world's leading music platforms, including TIDAL, Pandora and Amazon Music HD.
Technical specifications:
Amplifier unit:
Number of power amplifiers: 11
Output power (8 Ohm, 20 Hz - 20 kHz, 0.05% THD, 2-channel operation): 140 W
Output power (6 Ohm, 1 kHz, 0.7% THD, 2-channel operation): 175 W
Output power (6 Ohm, 1 kHz, 1% THD, 1-channel operation): 250 W
Discrete power amplifiers
Amplifier structure: Class A/B
current feedback topology
Bi-amp operation possible
Multi-channel surround:
DTSDTS: HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Multi-channel processing: 13.4
IMAX Enhanced
Auro 3D
Audyssey DSX
Multichannel Stereo
Inputs/Outputs:
Composite inputs/outputs: 2 / 0
Component input / output: 1 / 0
HDMI inputs / outputs: 7 / 3
Multi-room video out via HDMI: 0 / 0
Analog in / fixed level out: 3 in / 0 out
Phono (MM) input: Yes
Digital in: Optical / coaxial: 2 / 2
Multi-room output: analog / digital: 2 / 0
Multichannel preamp out: 7.2
Subwoofer output: 4 (independent)
7.1 multi-channel input: No
Number of speaker terminals: 13
Speakers A / B: assignable
Multi-room speaker connections: assignable
Front inputs: USB-A
USB audio: Yes / No / No
FM tuner with RDS: Yes
DAB+ tuner: No
Zone video outputs: Video / HDMI: 7/3
analog in/out: 6 / 0
Multichannel Pre Out: Yes (13.4)
Front inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
HDMI:
HDMI inputs / With 8K support 6 / 3
HDCP2.3 support Yes
HDMI outputs: Main zone / Zone 2 / 1
Analog to HDMI video No
HDMI upscaling 1080P/4K to 8K
Max resolution @ frame rate
Audio return channel for TV sound (ARC) ARC, eARC
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable refresh rate / Quick Frame Transport: Yes / Yes / No
HDMI pass-through in standby mode: Yes
HDMI control (CEC): Yes
DSD audio over HDM:I: No
Auto LipSync: Yes
HDMI inputs rear / front: 7 / -
Video conversion Analog > HDMI: Yes
HDMI to HDMI scaling: 1080P/4K to 8K
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / No
8K signal pass-through / scaling / GUI overlay: o / o / o
4K Signal Pass-Through / Scaling / GUI Overlay: o / o / o
DSD audio compatibility: Yes
Performance technologies:
copper coated Housing
Toroidal transformer
Hyper Dynamic Amplifier Module (HDAM) (List version)
Pure Direct Mode
Speaker screw terminals gold-plated / regular
Clock Jitter Reducer
Sound technologies:
Audyssey: MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC
Dirac Live Support
Variable crossover frequency
Optimized bass redirection
Bass synchronization
Dirac Live Upgradability
